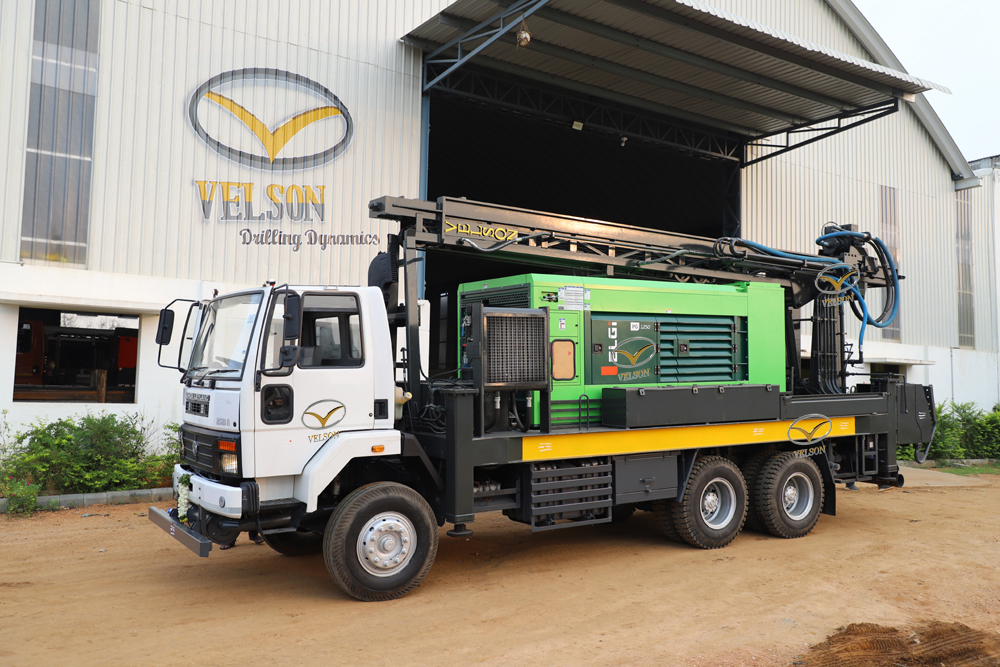

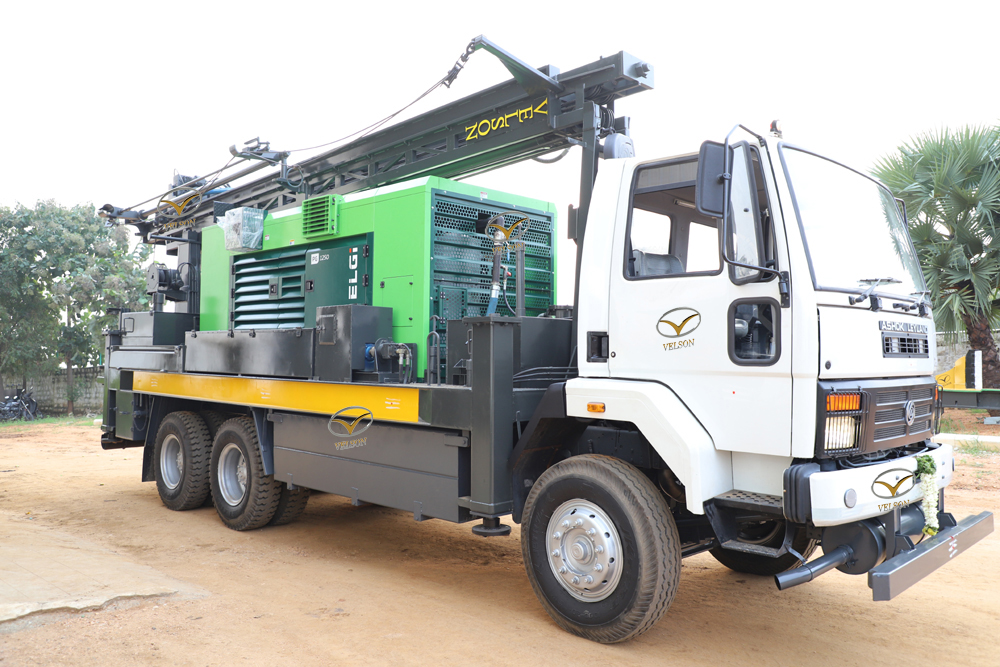

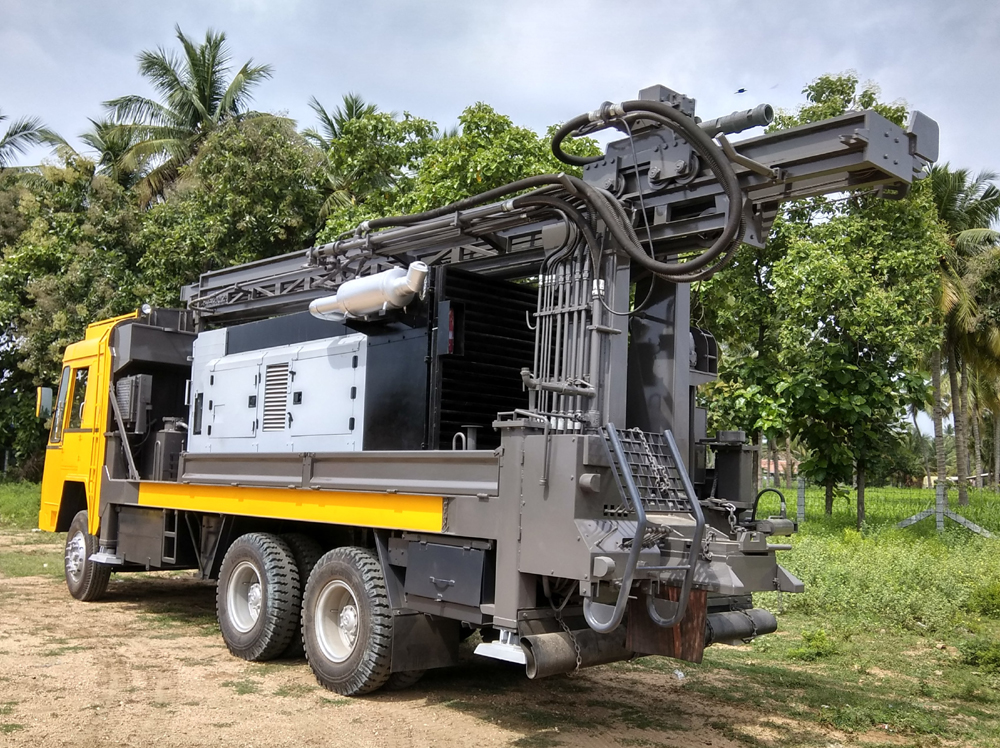

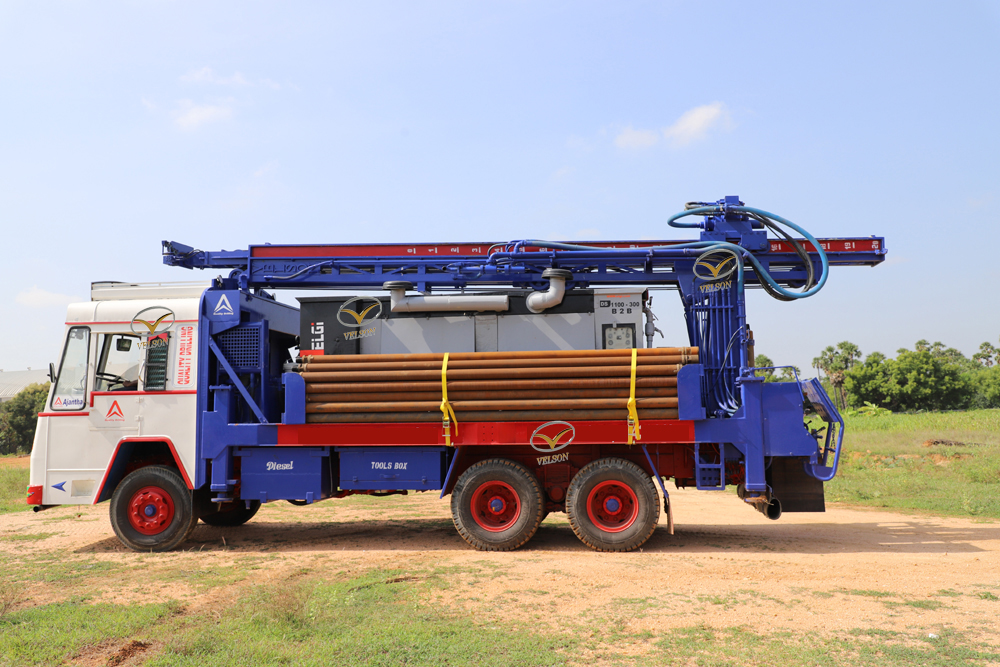

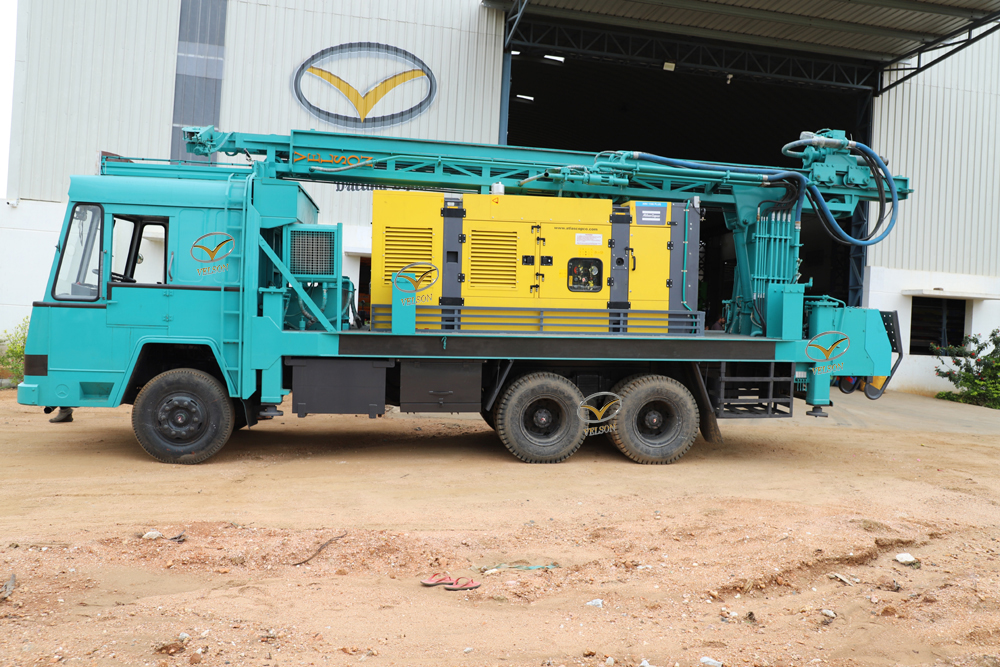

The drill rig consists of drill mast and air compressor in a single commercial truck. Accessories truck is also required to store the drilling tools and tackles.

Product Description

Water Well Rigs - V7
Application - 6”to7.5” borehole to a depth of 458 mtr
Prime Mover - Truck Mounted Rig with power from Truck Engine through PTO gear box
Mast - Box Type Structure
- Maximum Capacity-30-tons(67200 lbs)
- Height- 9 mtr(29.5 ft)
Rod Handling Length - Rod handling Capacity of 6.1 mtr(20 ft)
Drill Rod Diameter - 108 mm – 114 mm
MAX.PULL UP FORCE - 13500 kgs(29762 lbs)
MAX.PULL UP SPEED - 30.5 mtr/min(98 ft/min)
MAX PULL DOWN FORCE - 9000 kgs(19841 lbs)
MAX PULL DOWN SPEED - 45 mtr/min(147 ft/min)
PTO - Mounted on Centre propeller Shaft
Feed System - Hydraulic Cylinder driven steel rope & Pully System
Hydraulic System - 210 kg/cm2(3000 psi)
Hydraulic Oil Volume - 200 Gallon
Hydraulic Oil Cooler - 70 LPM Fin Type Cooler
Main Pump Flow - 230 Lpm
Rotary Head - Rotary head is powered by one Hydraulic Motor
- MAX. Torque – 3.8 KN
- MAX. Speed - 200 Rpm
Winch - Lifting Load Capacity - 750 kgs
Water Injection Pump - Triplex Reciprocating pump powered by Hydraulic Motor
Operating Panel - Attached with Corner of the Truck
BREAKOUT - One Hydraulic Cylinder Operated
Guide Bed Diameter - 267 mm
Rod Changer - Single Rod Handling
Optional Attachment - Mud Pump & Welding Set
