SAMP

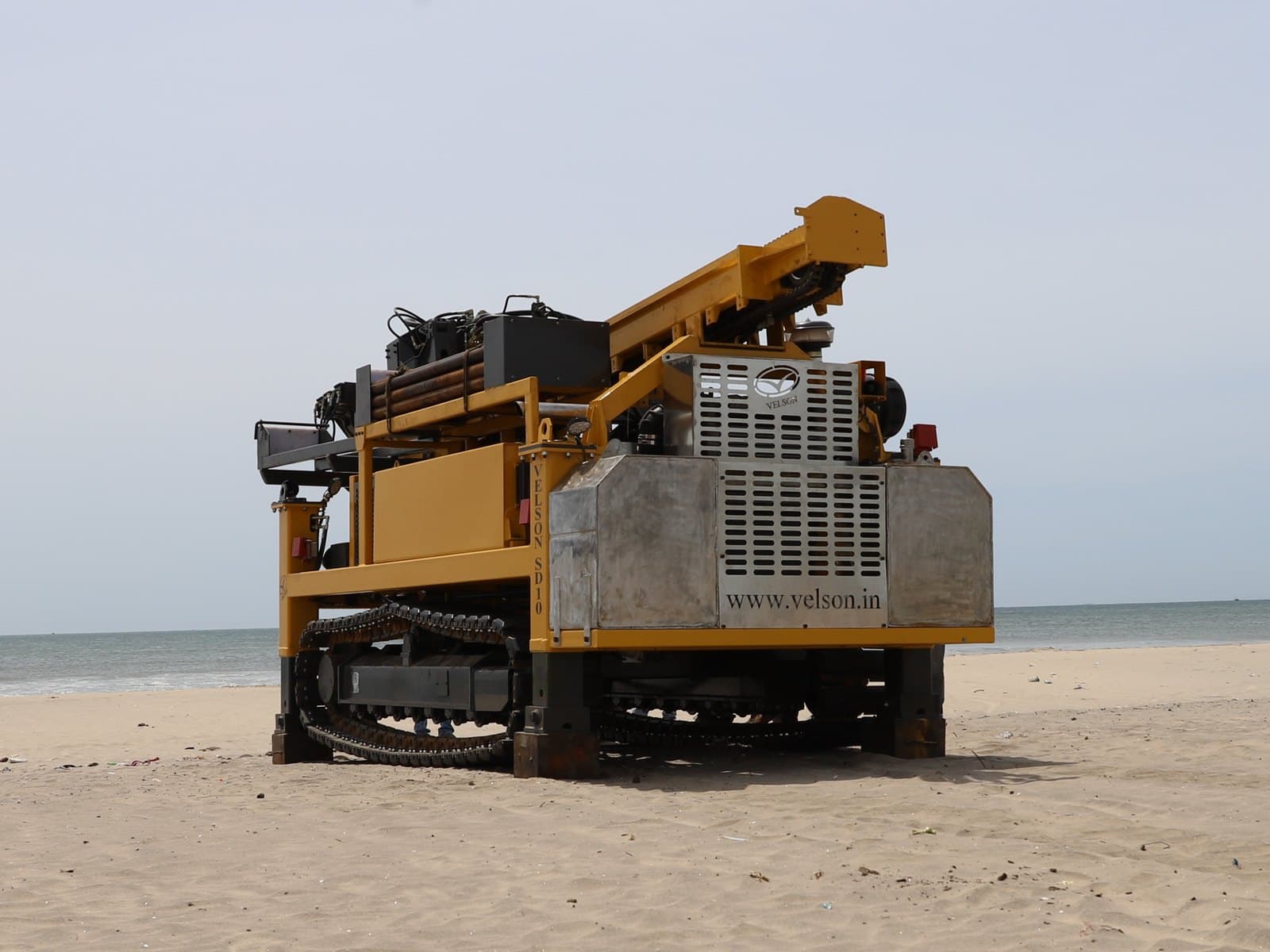

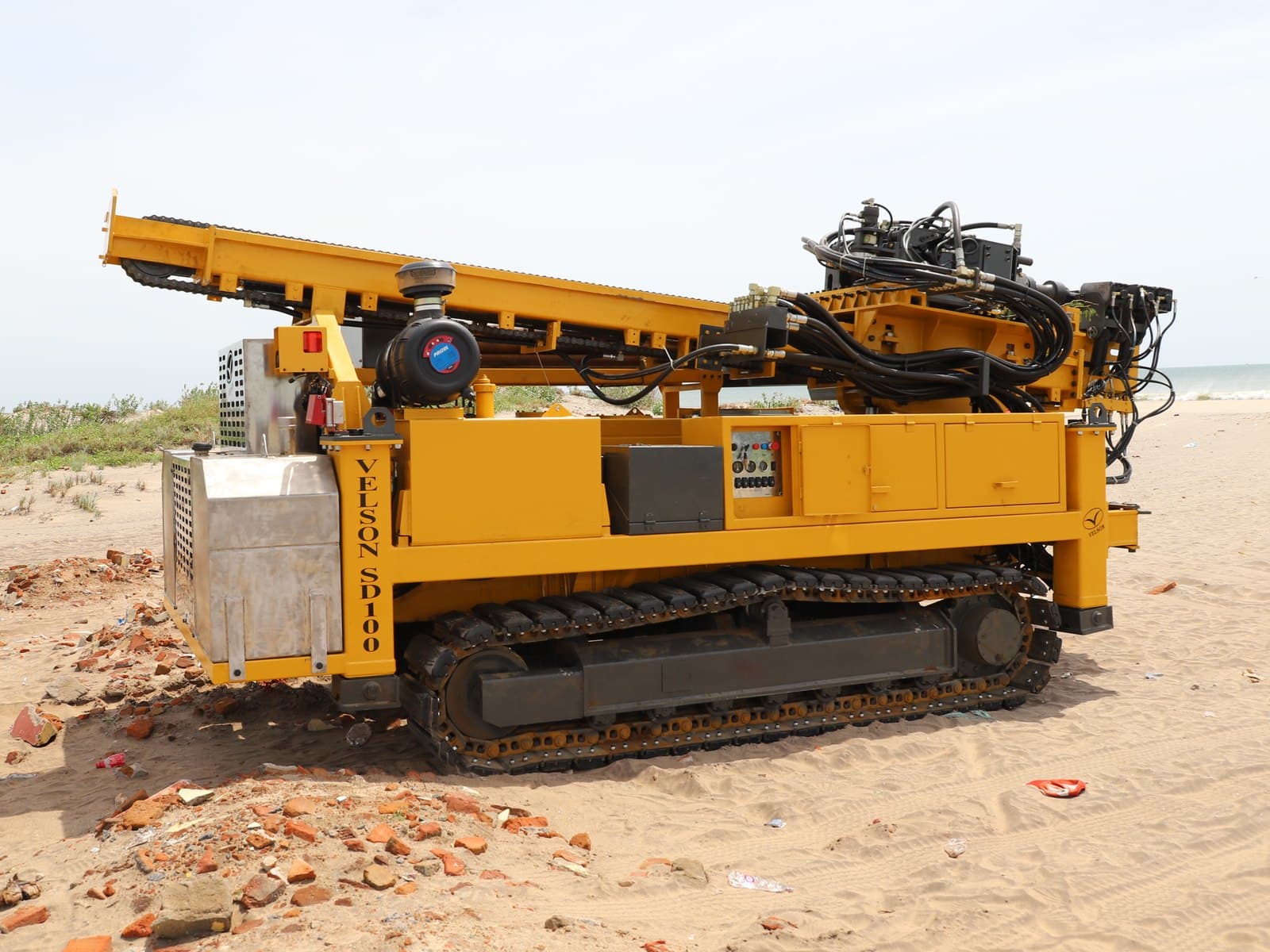

Crawler-mounted vibratory sampler for shallow ground investigation.
Compact field sampler for shallow survey and sampling work on coastal and soft-ground sites. A vibratory head running to 160 Hz and 160 kN of output force drives the string, with a 2,530 N·m rotary head on the same feed, and the rig carries itself on its own crawler undercarriage behind a 180 hp deck engine. An on-board mud pump and a high-pressure water pump handle flush, and the feed pulls 7,800 kgf on the way out.
- Max Pull-up
- 7800kgf
- Oscillation Frequency
- 0–160Hz
- Drill Type
- Vibratory
- Platform
- crawler
Full spec sheet
01
Application
- Type
- Sampling drill - vibratory head
02
Prime mover
- Chassis
- Crawler-mounted; deck engine
- Engine
- Diesel
- Power
- 180 hp / 134 kW @ 2,300 RPM
- Fuel tank capacity
- 300 L
- Travel speed
- 1.5–2 km/hr
- Gradeability
- 5:1 and above while drilling
03
Mast & feed
- Feed system
- Hydraulic cylinder driven chain
- Max pull-up force
- 7,800 kgf (76 kN)
- Max pull-up speed
- 45 m/min
- Max pull-down force
- 5,500 kgf (54 kN)
- Max pull-down speed
- 65 m/min
04
Rotary head
- Max torque
- 2,530 N·m
- Max rotation speed
- 120 RPM
- Head travel length
- 3.4 m
05
Vibratory head
- Oscillation frequency
- 0–160 Hz
- Oscillator output force
- 160 kN (16,300 kgf)
06
Hydraulics
- Main pump
- Variable-displacement pump
- Max system pressure
- 320 bar (4,640 psi)
- Hydraulic tank volume
- 450 L (119 gallons)
07
Water & dust suppression
- Water pump
- High-pressure - 36 LPM @ 100 bar (1,450 psi)
- Mud pump
- 200 LPM @ 50 bar (725 psi)
08
Operator & controls
- Operating panel
- Inside the operator cabin
09
Dimensions & weight
- Length
- 6.5 m
- Width
- 2.13 m
- Height
- 2.6 m (mast at rest)
- Total weight
- ≈ 9,500 kg
