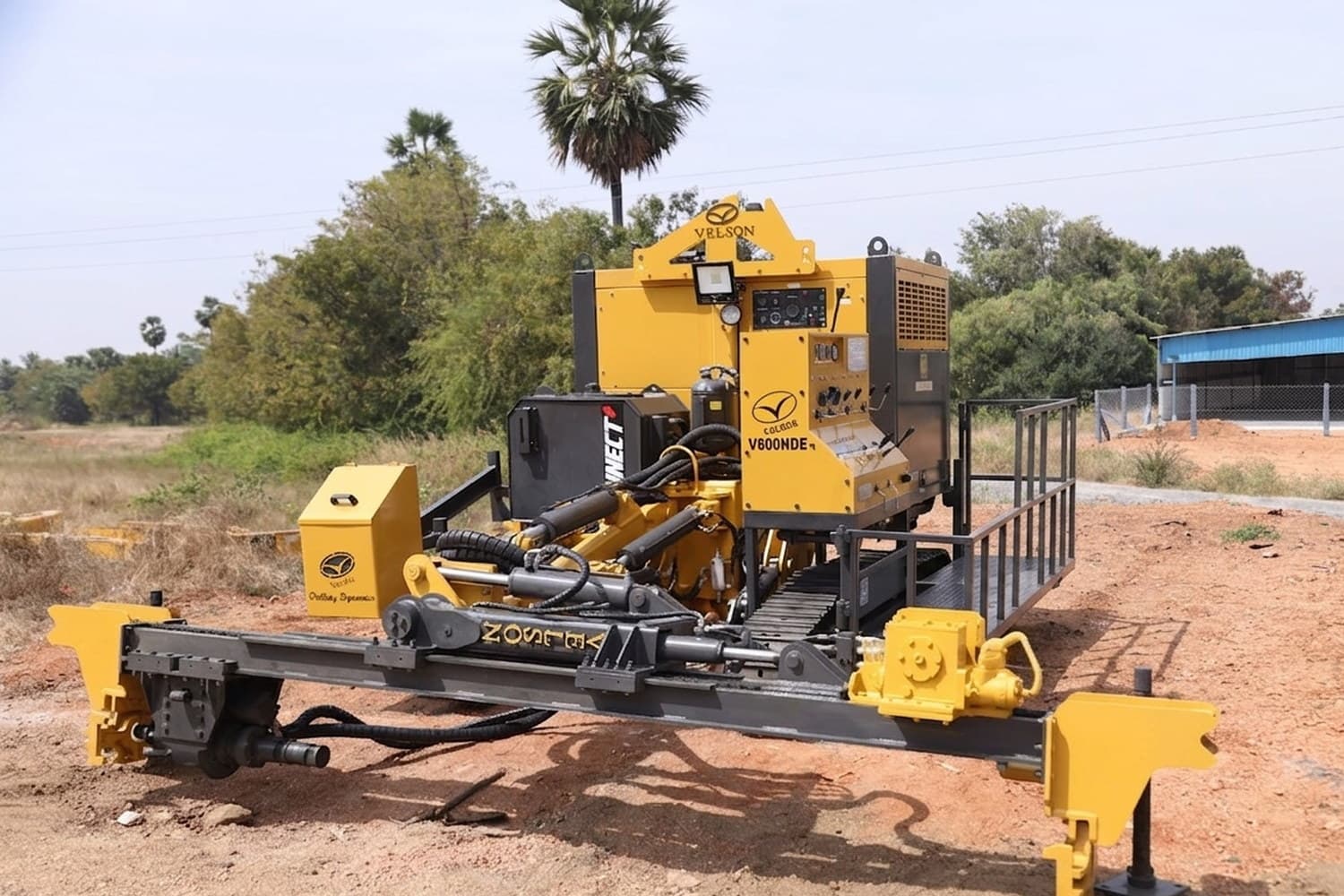

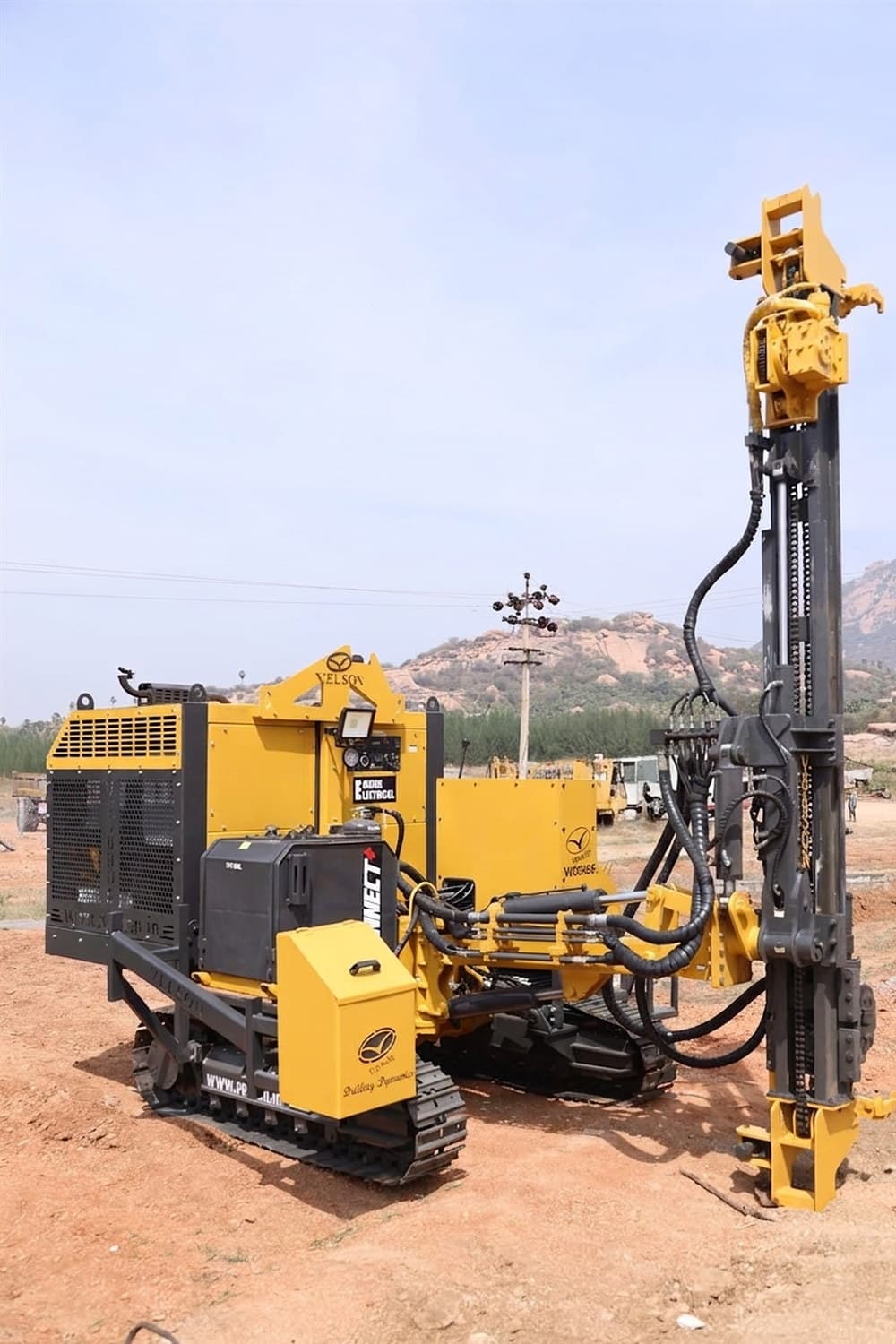

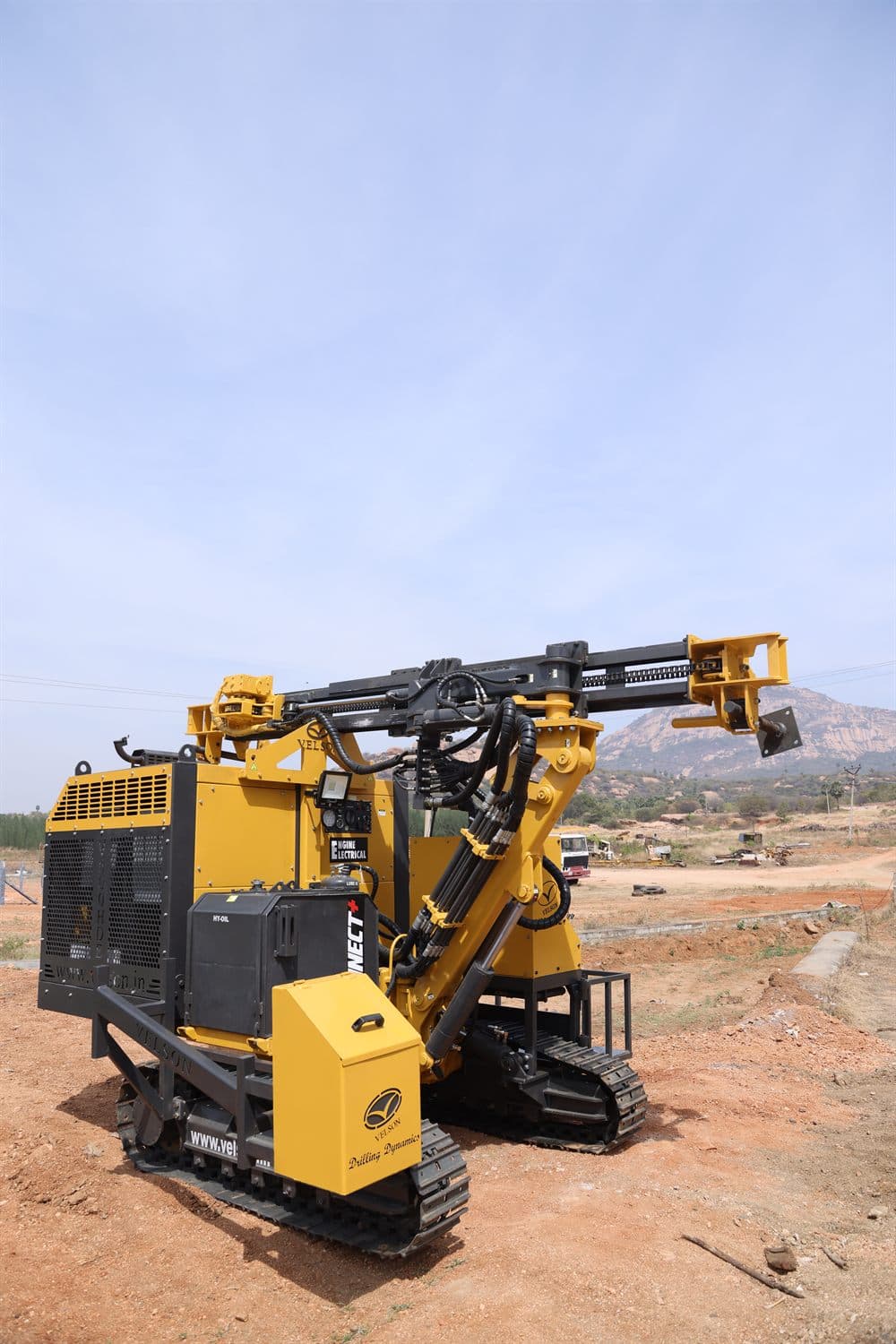

HDE-600
Dimension-stone drill for granite quarry operations.
Crawler-mounted DTH drill for the dimension-stone and granite industry. Designed to pair with hole-match hammers so adjacent holes are drilled with consistent spacing for production drilling, quarry and mine development.
- Max Depth
- 30m
- Hole Diameter (min)
- 115mm
- Hole Diameter (max)
- 115mm
- Max Pull-up
- 2000kgf
- Platform
- crawler
Full spec sheet
01
Application
- Type
- DTH - Down-the-Hole
- Hole diameter
- 115 mm
- Max drilling depth
- 30 m (100 ft)
- Drilling angle
- Vertical and horizontal
02
Prime mover
- Chassis
- Crawler-type
- Engine
- Diesel: inline 4-cylinderElectric: 1,440 RPM motor
- Power
- Diesel: 45 HPElectric: 25 HP
- Fuel tank capacity
- 60 L
- Travel speed
- 2.3 km/hr
- Gradeability
- 30°
03
Mast & feed
- Mast
- Dual-channel HD structure
- Drill rod length
- 8 ft
- Drill rod diameter
- 76 mm
- Feed control
- Variable feed control
- Max pull-up force
- 2,000 kgf (20 kN)
- Max pull-up speed
- 22 m/min
- Max pull-down force
- 2,000 kgf (20 kN)
- Max pull-down speed
- 22 m/min
04
Rotary head
- Max torque
- 1,100 N·m
- Max rotation speed
- 100 RPM
05
Compressor & air
- Compressed-air requirement
- 350–450 cfm @ 150–200 psi
06
Dimensions & weight
- Length
- 5.125 m
- Width
- 2.415 m
- Height
- 2.6 m
- Total weight
- 4.9 tons
Custom build, parts, or service for the HDE-600?
Our team is the team that built the rig. Send a note with your application and we'll route it to engineering.
