Solar Pole-Hole Drill
Pole and helical-pile drilling attachment for solar fields.

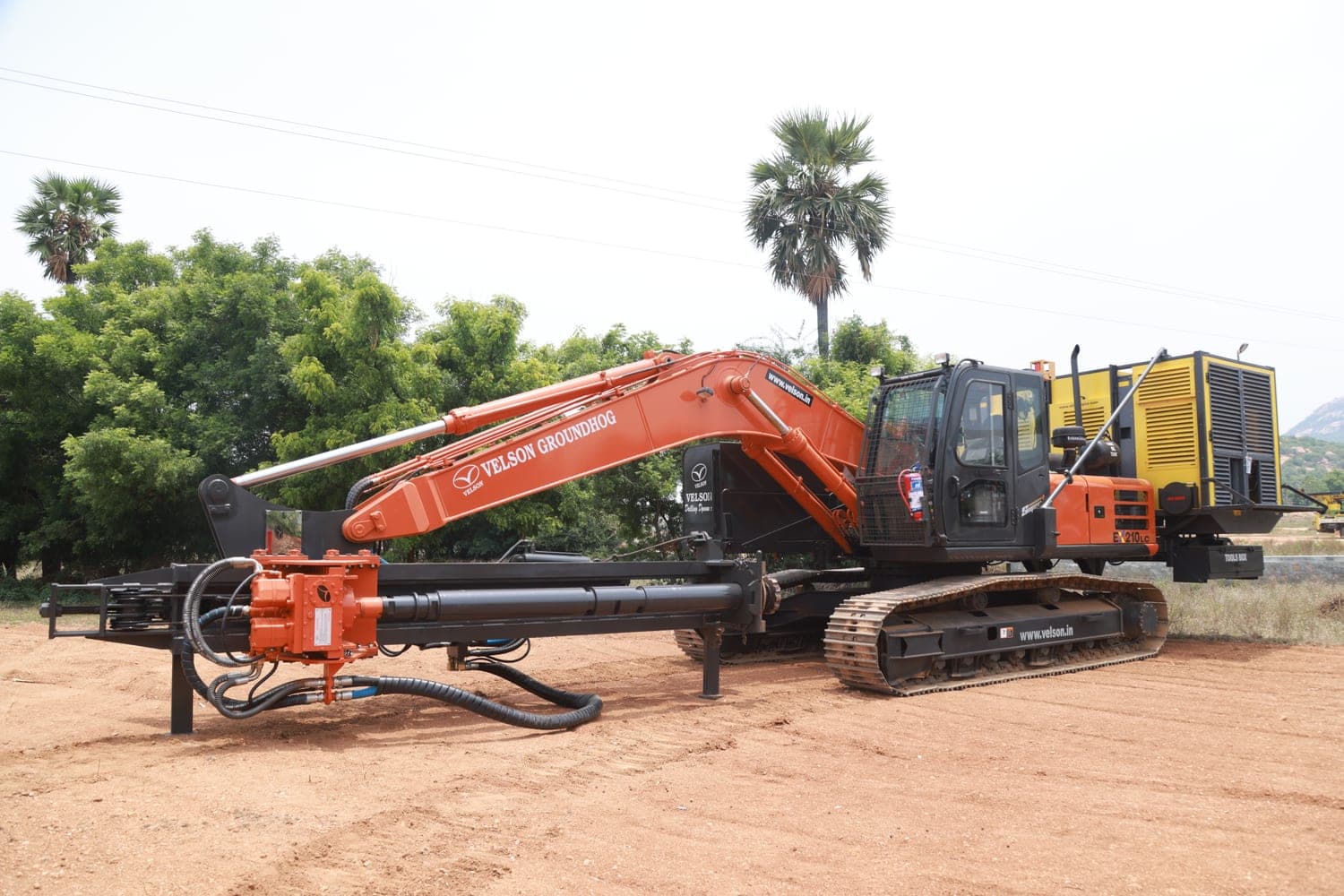

Excavator-mounted DTH attachment for solar-field anchor installation. Drills 6″–20″ pole-holes on a long-crawler Ground Hog base. Helical piles and micropiles work well under both compression (panel weight) and tension (wind and ground movement) - making the rig well-suited to solar-array foundations. Mast tilts on the Y-axis for vertical and angled piles.
- Max Depth
- 25m
- Hole Diameter (min)
- 152mm
- Hole Diameter (max)
- 508mm
- Max Pull-up
- 9000kgf
- Platform
- excavator-attachment
Full spec sheet
01
Application
- Type
- Pole-hole drill - Down-the-Hole (DTH)
- Hole diameter
- 6″ to 20″
- Guide bed diameter
- 16″
- Max drilling depth
- 25 m
02
Mast & feed
- Mast height
- 5.17 m
- Mast tilting

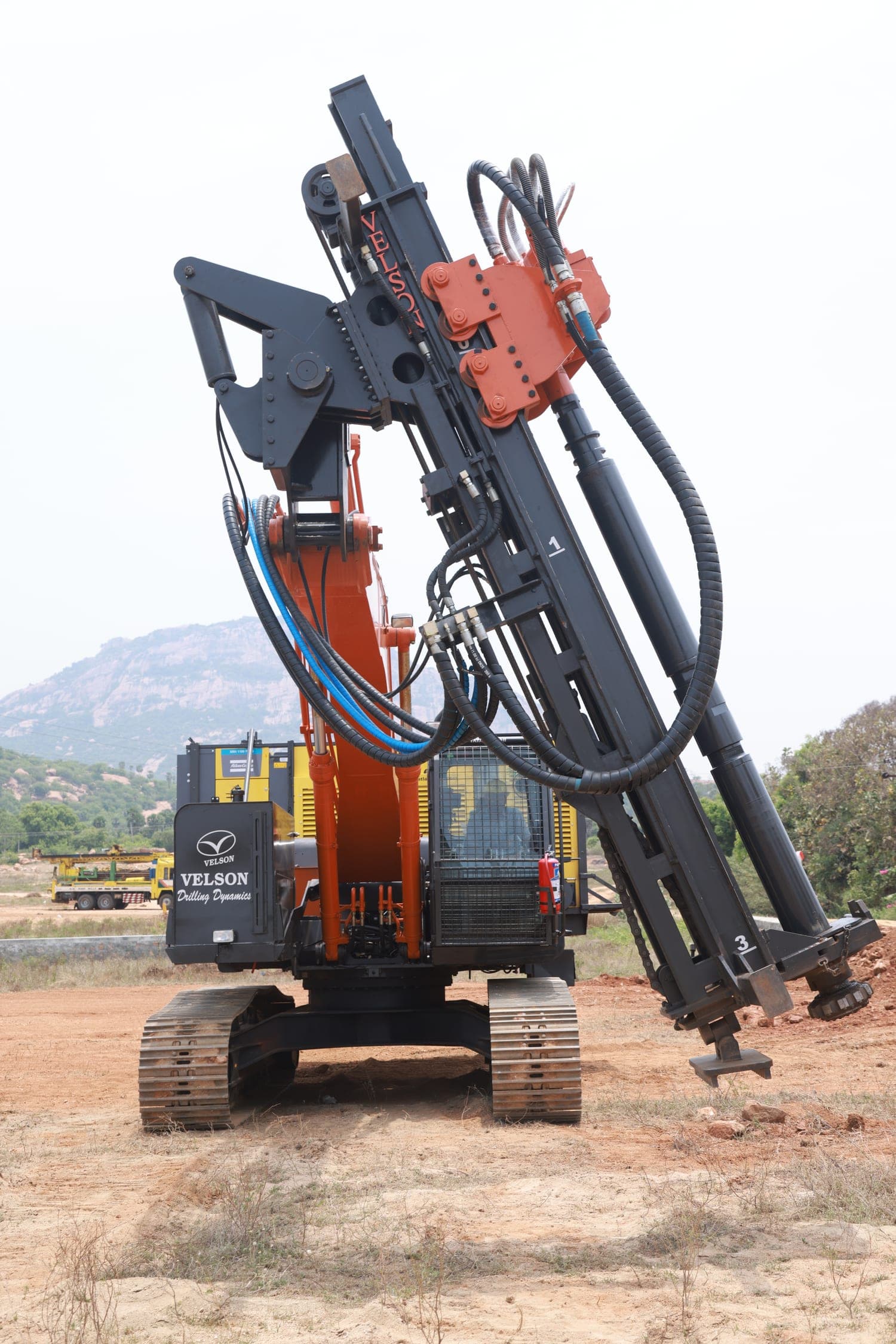

- Y-axis 50° vertical to both sides 25°
- Mast movement
- Front and back, left and right
- Single-stroke drilling depth
- 3 m
- Drill rod diameter
- 60–125 mm
- Feed system
- Hydraulic cylinder driven steel rope and chain
- Max pull-up force
- 9,000 kgf (88 kN)
- Max pull-up speed
- 40 m/min
- Max pull-down force
- 6,300 kgf (62 kN)
- Max pull-down speed
- 70 m/min
03
Rotary head
- Max torque
- 7,500 N·m
- Max rotation speed
- 90 RPM
04
Hydraulics
- Max system pressure
- 210 kgf/cm² (3,000 psi) at drilling operation
- Carrier pump flow required
- 370 LPM
- Drilling flow required
- 150 LPM
05
Compressor & air
- Compressor
- On board
- Compressor control
- Inside the excavator operator cabin
- Compressor fuel tank
- 1,000 L
06
Operator & controls
- Operating panel
- Inside the excavator operator cabin
- Electrical system
- Wiring and lighting harness
- Rear view
- Rear camera with display
07
Safety & stabilisation
- Fire suppression
- Mounted at cabin front
- While drilling
- Track locked in position
- Marching alert
- Buzzer with blinking light
- Operator seat belt
- Yes
