V2i Myrmax
Truck-mounted water-well platform with automated rod handling.

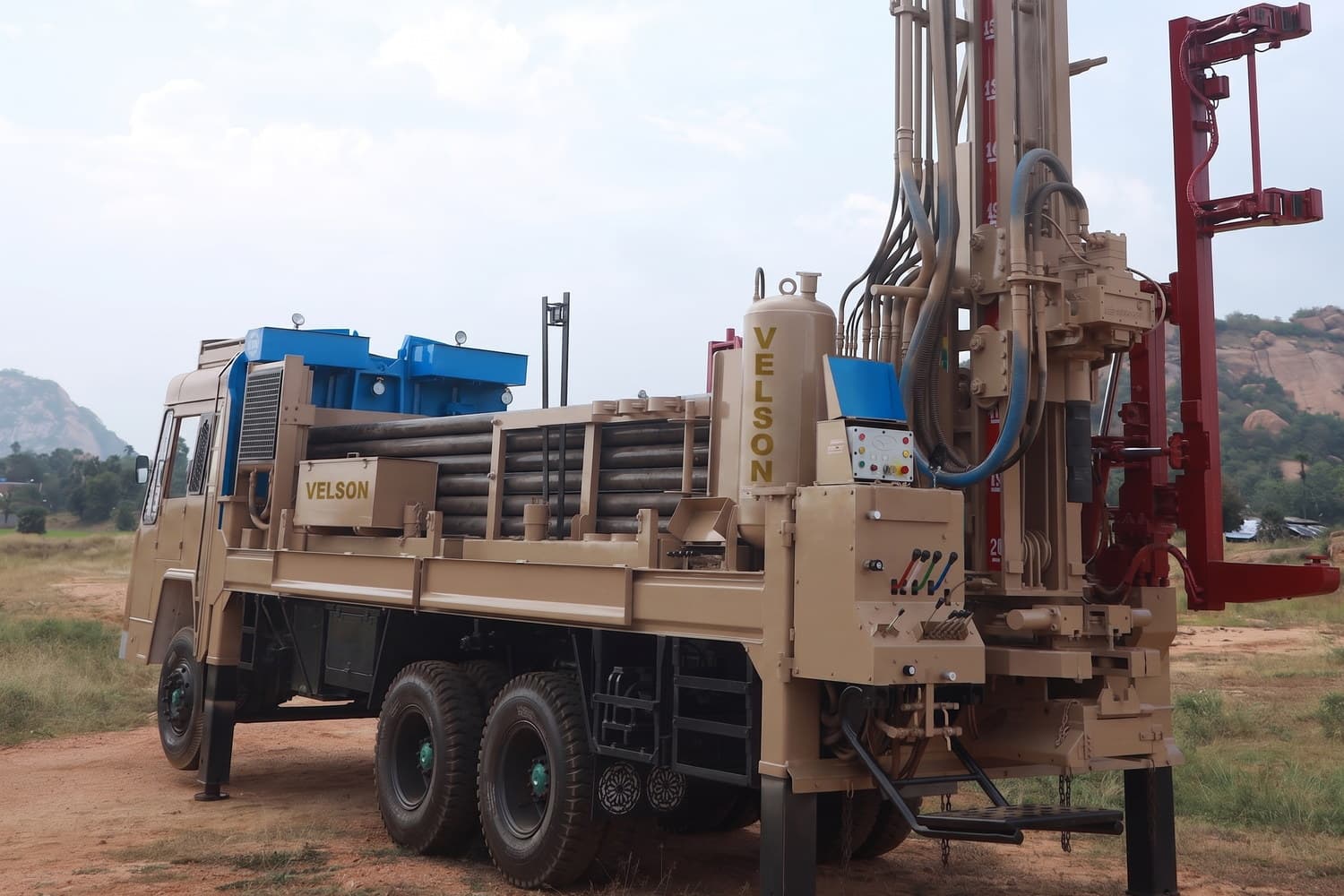

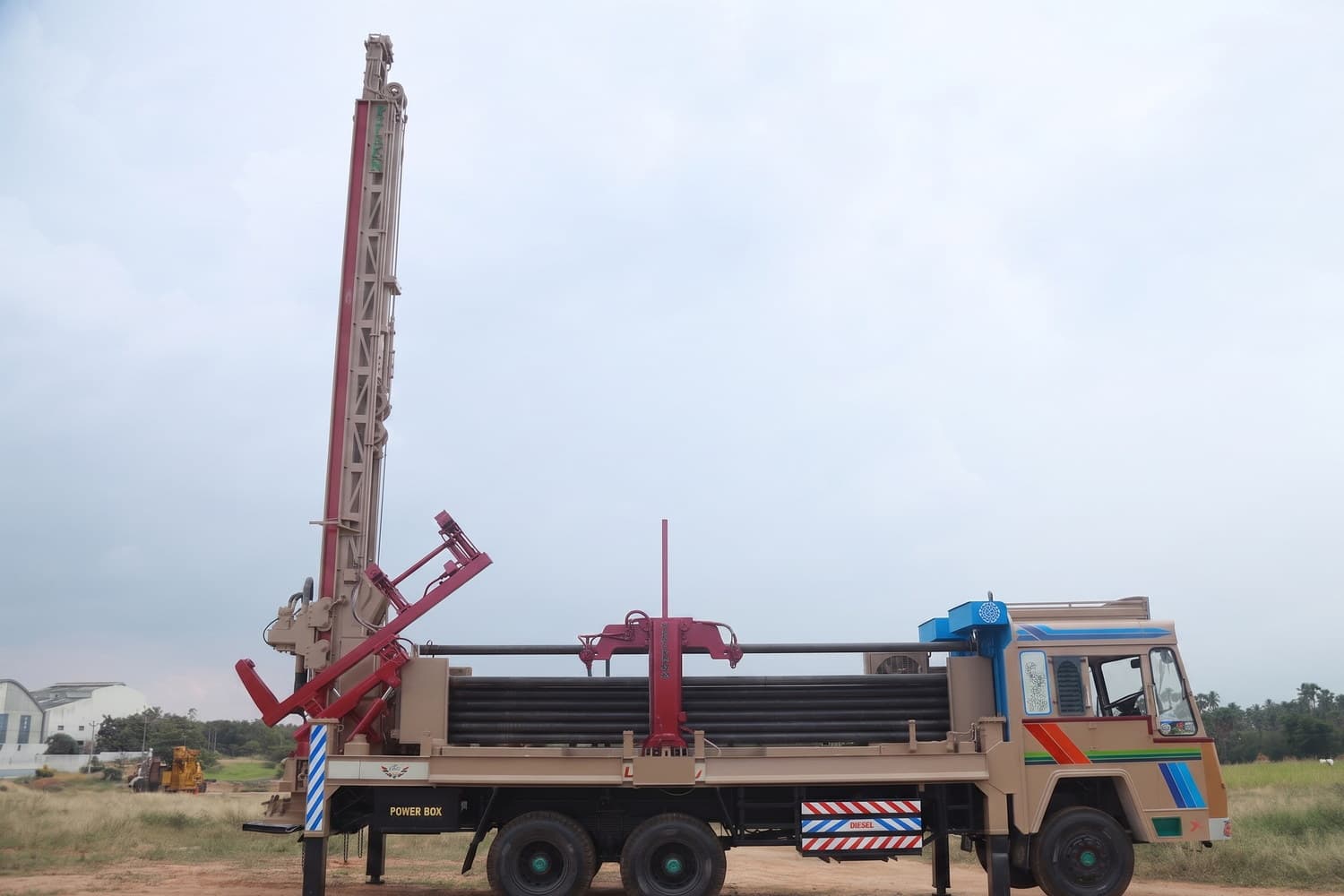

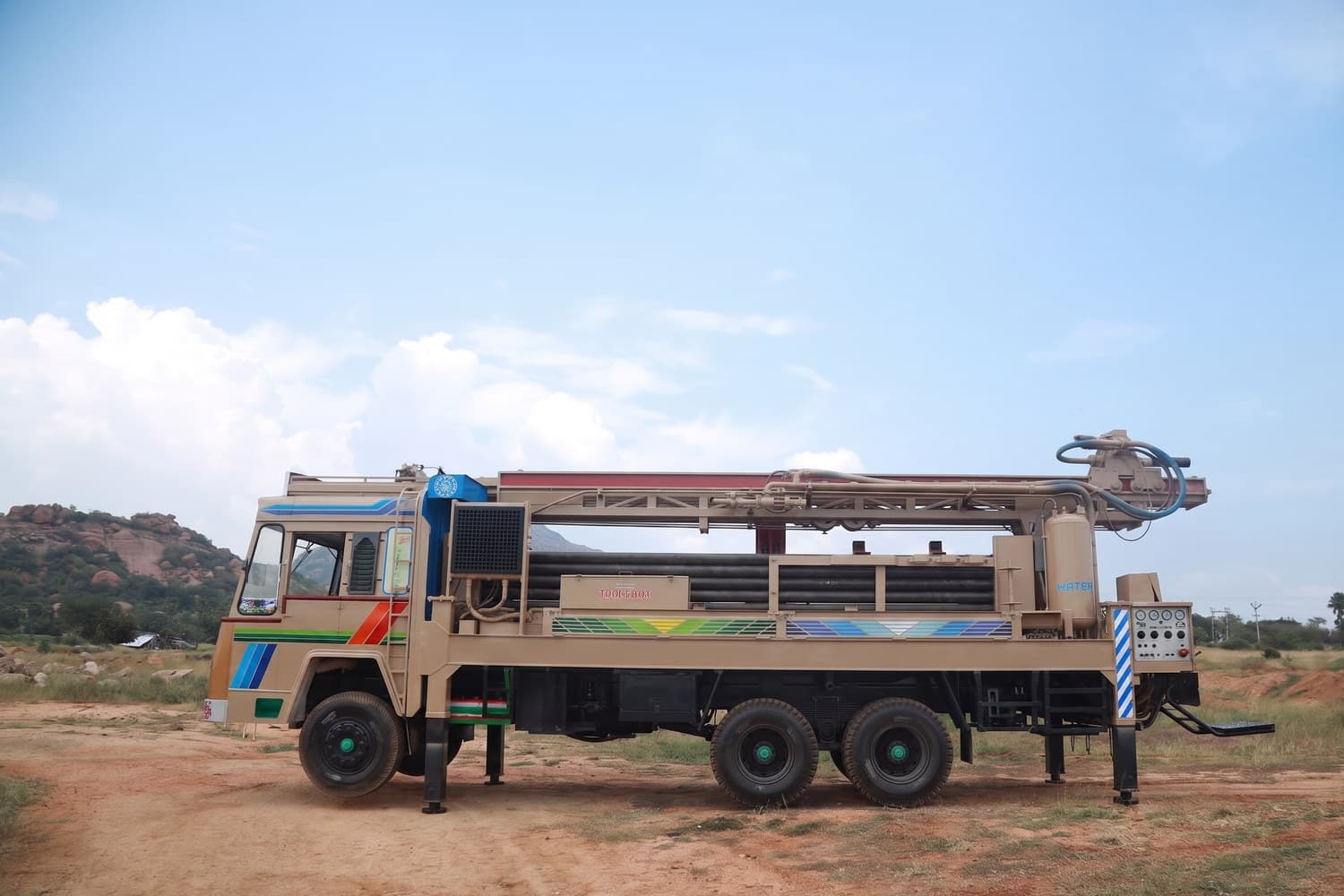

Truck-mounted water-well rig drilling 6.5″–10.5″ boreholes to 600 m (1,970 ft). Power comes off the truck engine through a PTO gear box; a 30-ton box-type mast with 6.1 m rod handling and an on-board rod store keep rod changes off the operator's hands.
- Max Depth
- 600m
- Hole Diameter (min)
- 203mm
- Hole Diameter (max)
- 267mm
- Max Pull-up
- 20300kgf
- Platform
- truck
- Rod Handling
- auto
Full spec sheet
01
Application
- Hole diameter
- 6.5″ to 10.5″ borehole
- Guide bed diameter
- 267 mm
- Max drilling depth
- 600 m (1,970 ft)
02
Prime mover
- Chassis
- Truck-mounted; power from truck engine through PTO gear box
- PTO
- Mounted on centre propeller shaft
03
Mast & feed
- Mast
- Box-type structureMaximum capacity 30 tons (67,200 lbs)Height 9 m (29.5 ft)
- Drill rod length
- 6.1 m (20 ft)
- Drill rod diameter
- 108–114 mm
- Feed system
- Hydraulic cylinder driven steel rope and pulley
- Max pull-up force
- 20,300 kgf (199 kN)
- Max pull-up speed
- 30.5 m/min (98 ft/min)
- Max pull-down force
- 12,000 kgf (118 kN)
- Max pull-down speed
- 45 m/min (147 ft/min)
04
Rotary head
- Configuration
- Single hydraulic motor
- Max torque
- 5,000 N·m
- Max rotation speed
- 200 RPM
05
Rod handling
- Rod storage capacity
- 71 rods
- Operating modes
- Automatic
06
Hydraulics
- Main pump flow
- 230 LPM
- Max system pressure
- 210 kgf/cm² (3,000 psi)
- Hydraulic tank volume
- 760 L (200 gallons)
- Hydraulic oil cooler
- 130 LPM fin-type
07
Water & dust suppression
- Water injection pump
- Triplex reciprocating, hydraulic-motor driven
08
Winches
- Top winch
- Lifting capacity 500 kg
09
Operator & controls
- Operating panel
- Attached at the truck corner
