V3i Cisada

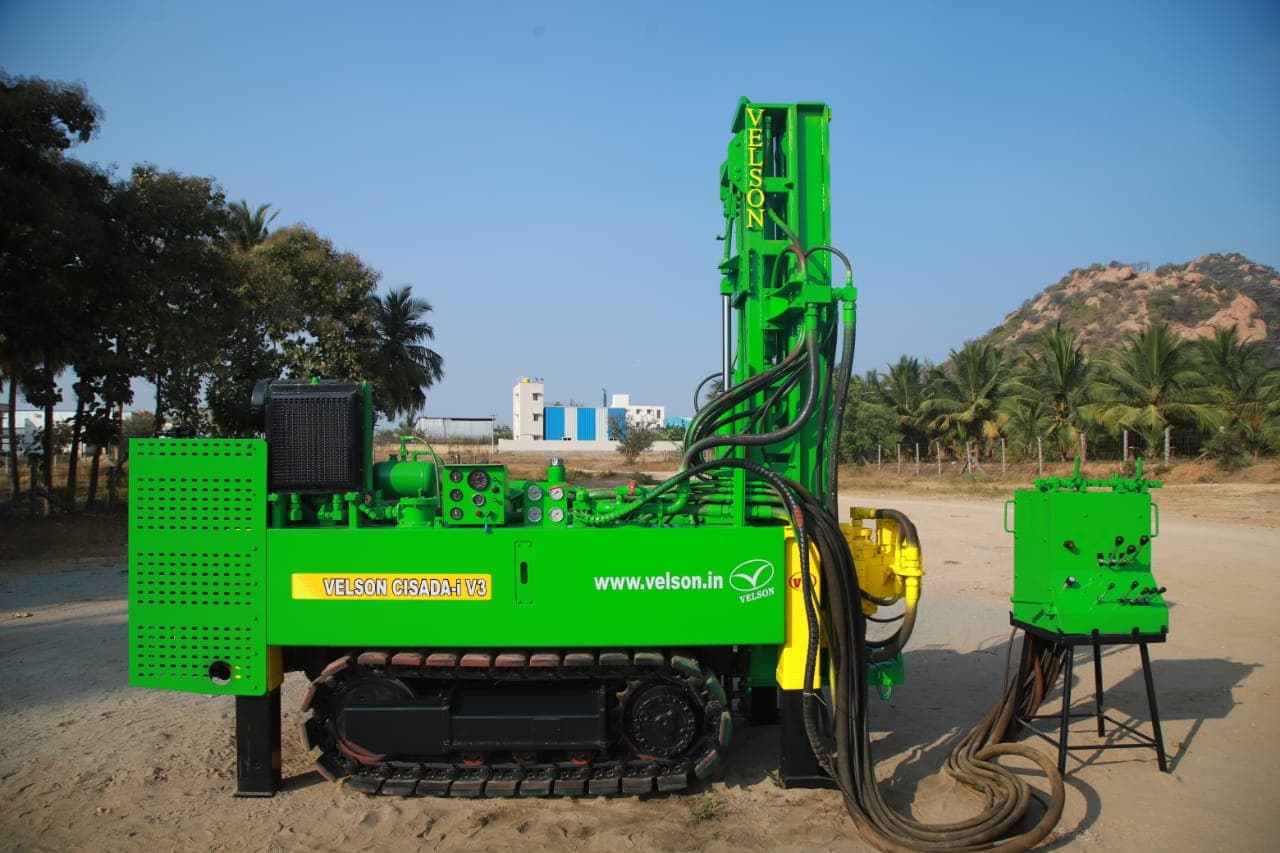

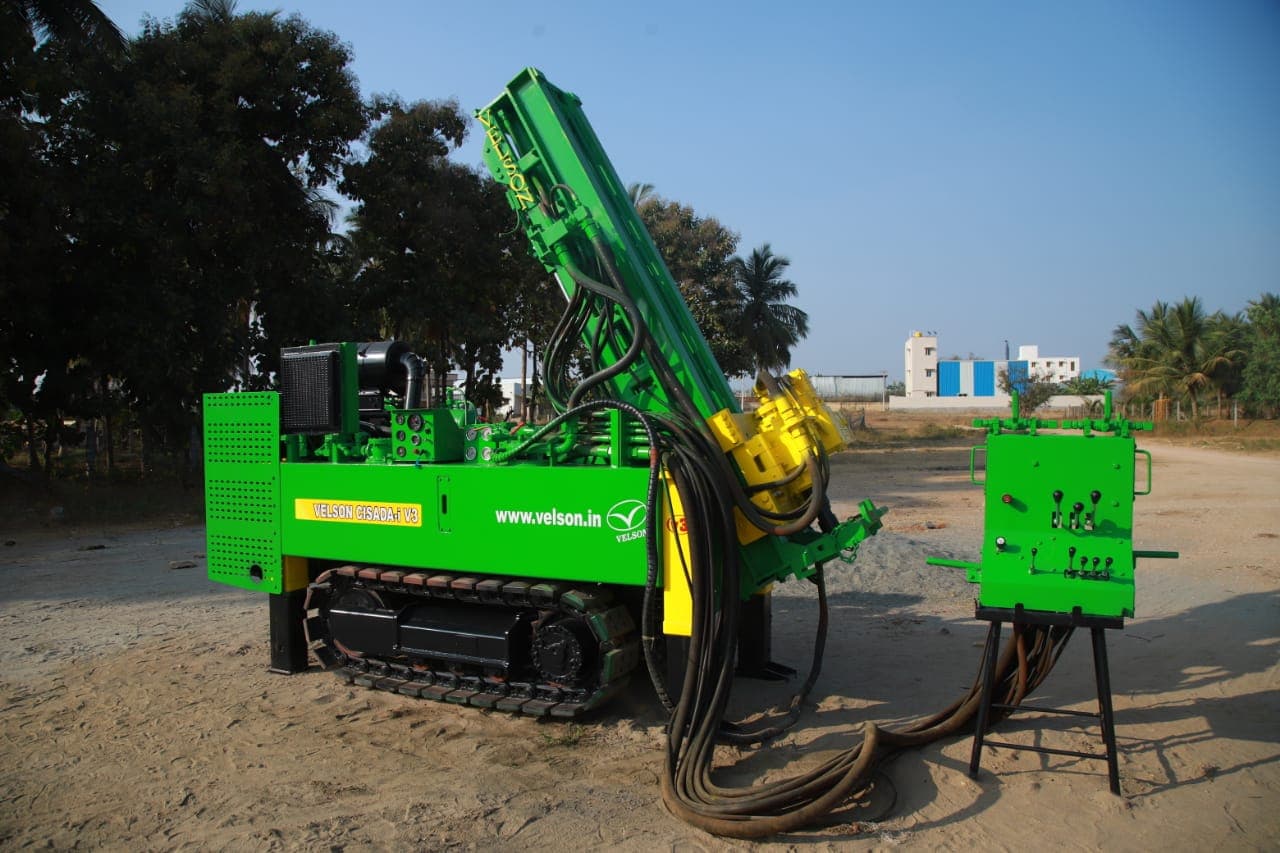

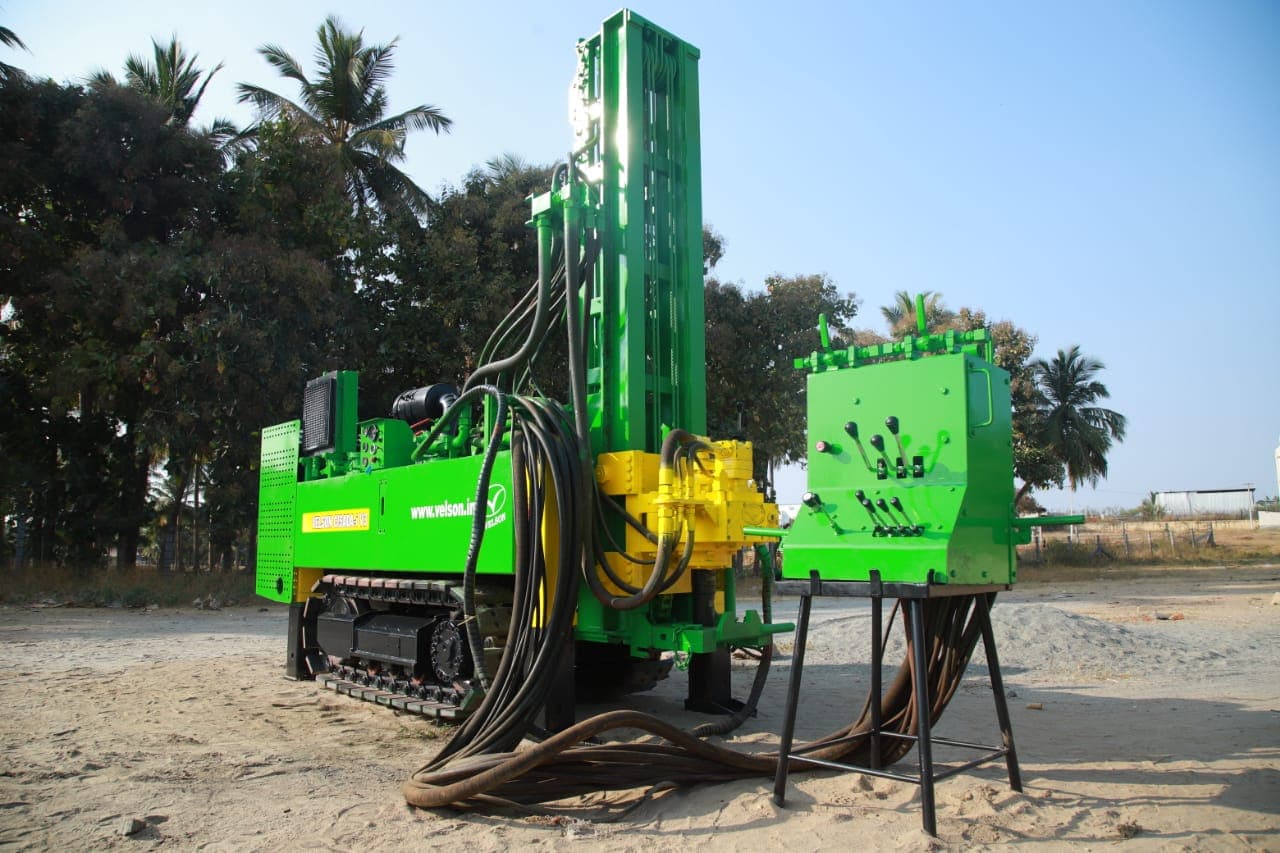

Crawler-mounted water-well rig for restricted-access drilling.
Compact crawler rig with a 180HP deck engine, designed for boreholes 3″–8″ to a depth of 600 m by DTH. Small footprint lets the rig operate inside compound walls, under building roofs, and on upper floors when ground-level access is restricted.
- Max Depth
- 600m
- Hole Diameter (min)
- 76mm
- Hole Diameter (max)
- 203mm
- Max Pull-up
- 15500kgf
- Platform
- crawler
Full spec sheet
01
Application
- Hole diameter
- 3″ to 8″ borehole - DTH
- Max drilling depth
- 600 m (1,970 ft)
02
Prime mover
- Chassis
- Crawler-mounted; deck engine 180 HP @ 2,400 RPM
- PTO
- Direct coupled with engine
- Fuel tank capacity
- 120 L
- Travel speed
- 2.5 km/hr
- Gradeability
- 35°
03
Mast & feed
- Mast
- Standard box-type structureHeight 2.65 mDrill rod length 1.52 m (5 ft)
- Mast dumping
- 0.6 m up/down movement
- Drill rod diameter
- 90–115 mm
- Feed system
- Hydraulic cylinder driven steel rope and chain
- Max pull-up force
- 15,500 kgf (152 kN)
- Max pull-up speed
- 23 m/min
- Max pull-down force
- 10,200 kgf (100 kN)
- Max pull-down speed
- 35 m/min
04
Rotary head
- Configuration
- Single hydraulic orbit motor
- Max torque
- 3.8 kN·m
- Max rotation speed
- 130 RPM
- Head travel length
- 1.7 m
05
Rod handling
- Rod breakout
- Hydraulic single-cylinder braking system
06
Hydraulics
- Max system pressure
- 218 kgf/cm² (3,100 psi)
