V4 Red Fox

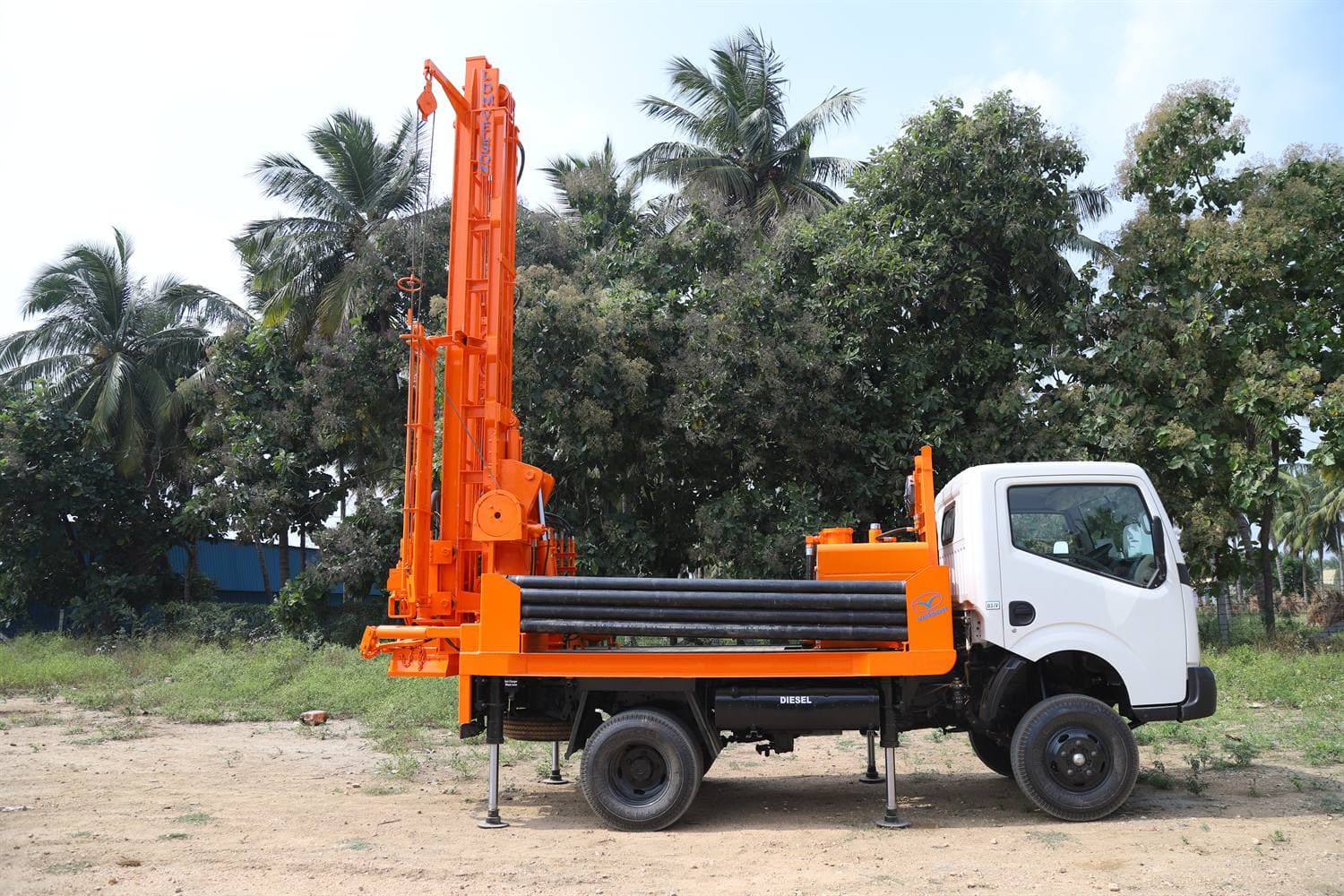

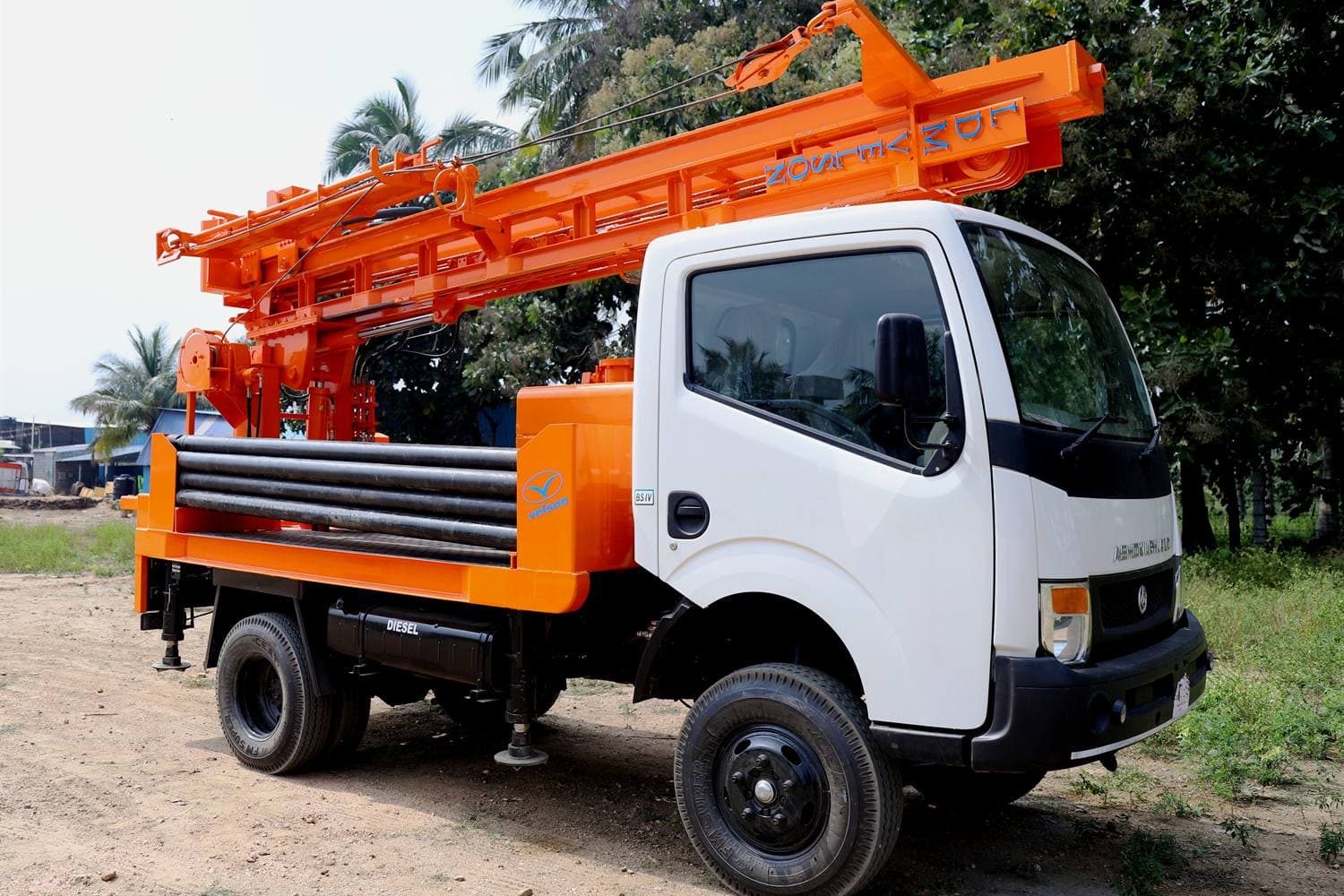

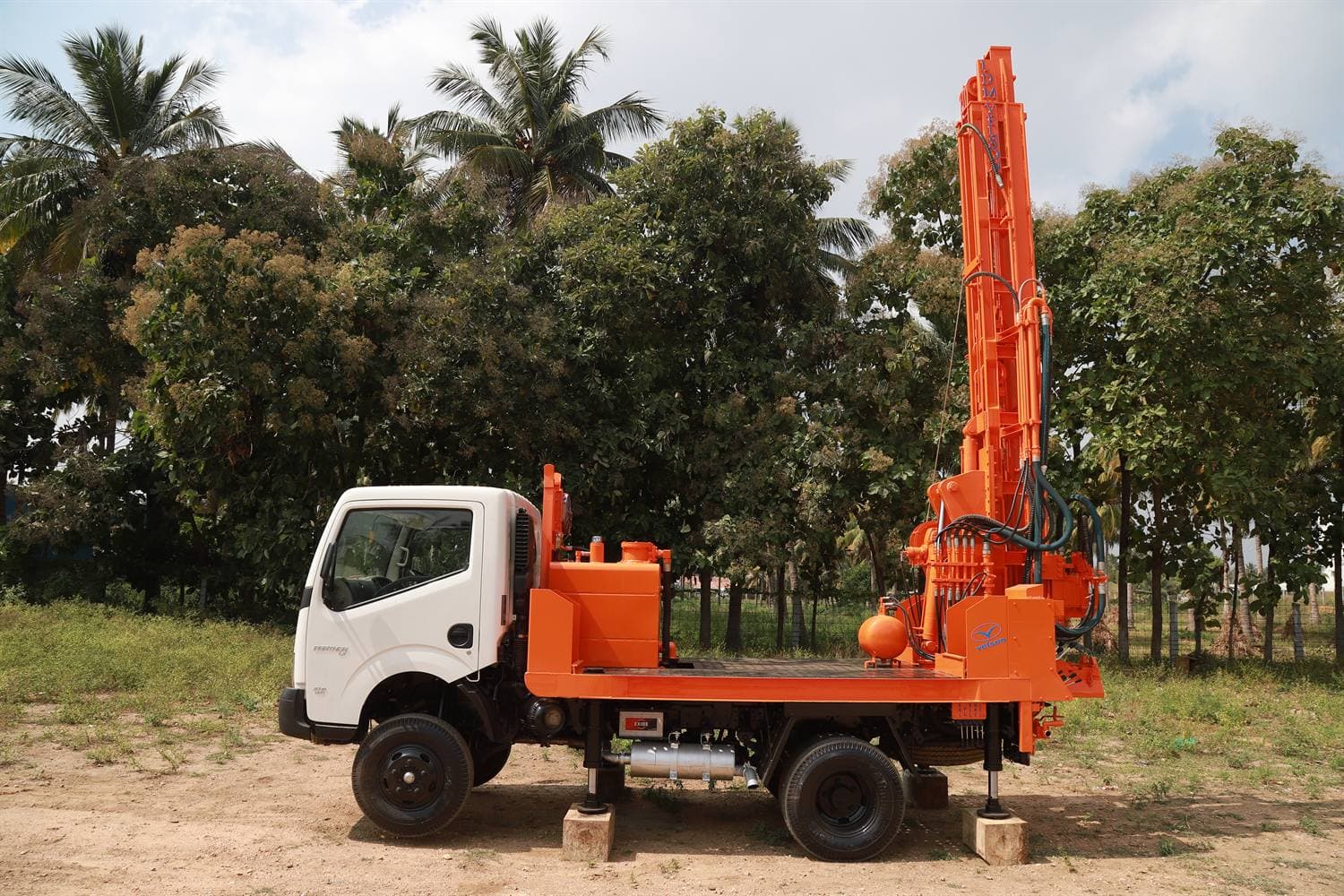

Compact water-well rig on a light commercial vehicle chassis.
LCV-mounted drill for 6.5″ boreholes from 90 m to 300 m. Built for cramped sites, village-level water-well work, and access-constrained drilling locations. Powered from the truck engine or an independent deck engine.
- Max Depth
- 300m
- Hole Diameter (min)
- 165mm
- Hole Diameter (max)
- 165mm
- Max Pull-up
- 6000kgf
- Platform
- truck
Full spec sheet
01
Application
- Hole diameter
- 6.5″ borehole
- Guide bed diameter
- 10.5″
- Max drilling depth
- 90 m to 300 m (295–985 ft)
02
Prime mover
- Chassis
- Truck-mounted on LCV; power from truck engine or deck engine
03
Mast & feed
- Mast
- Box-type structureHeight 5.7 m (18.7 ft)Drill rod length 3.04 m (10 ft)
- Max pull-up force
- 3,000–6,000 kgf (29–59 kN)
- Max pull-up speed
- 30–40 m/min
- Max pull-down force
- 1,500–4,500 kgf (15–44 kN)
- Max pull-down speed
- 35–50 m/min
04
Rotary head
- Configuration
- Single hydraulic orbit motor
- Max torque
- 2,000–3,800 N·m
- Max rotation speed
- 160 RPM
- Head travel length
- 3.6 m
05
Rod handling
- Rod changer
- 10-ft single-rod handling
- Rod breakout
- Hydraulic breakout
06
Hydraulics
- Max system pressure
- 180 kgf/cm² (2,560 psi)
- Hydraulic tank volume
- 340 L (90 gallons)
- Hydraulic oil cooler
- 80 LPM fin-type
07
Water & dust suppression
- Water injection pump
- Triplex reciprocating, hydraulic-motor driven
08
Winches
- Top winch
- 750 kg lifting capacity
