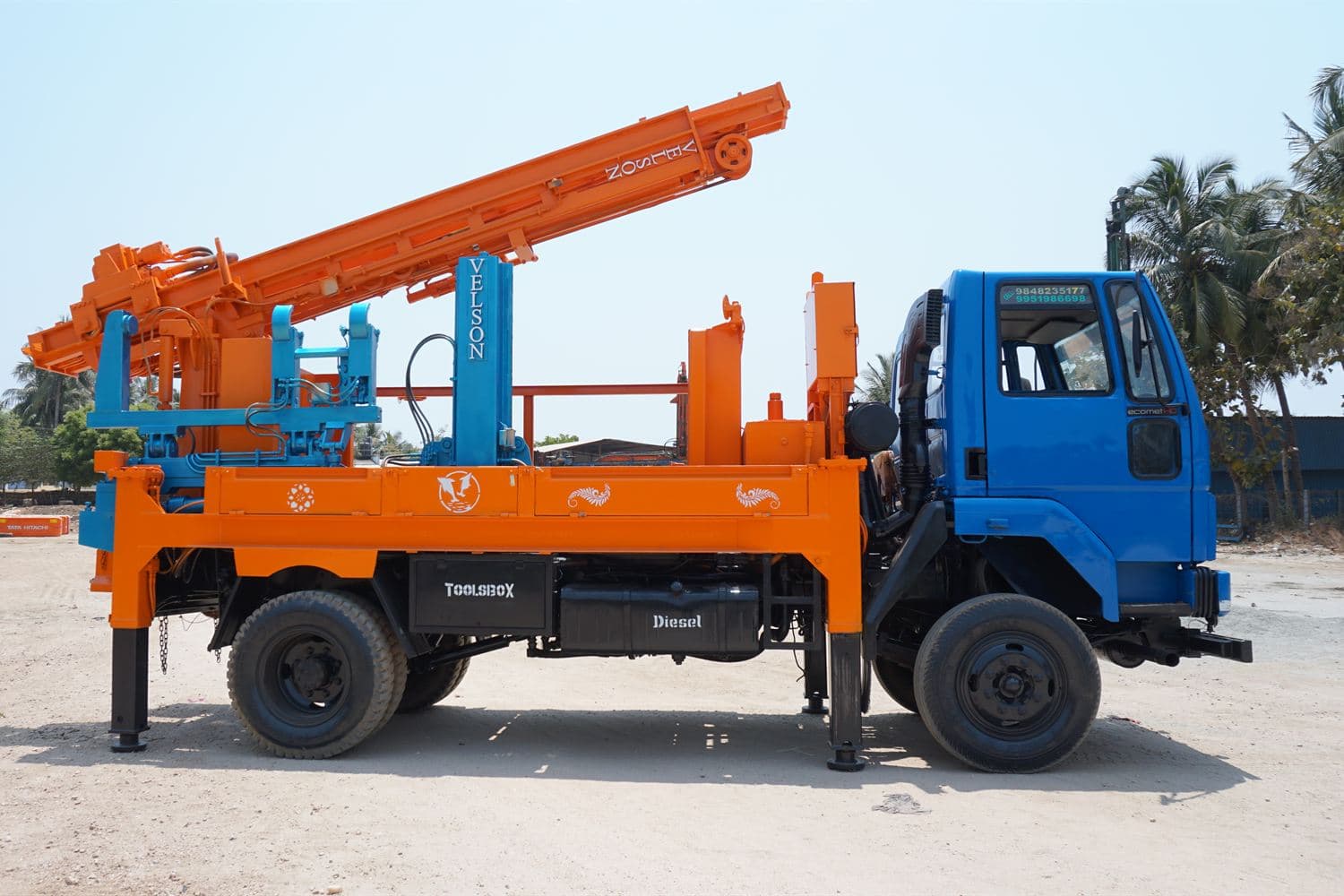

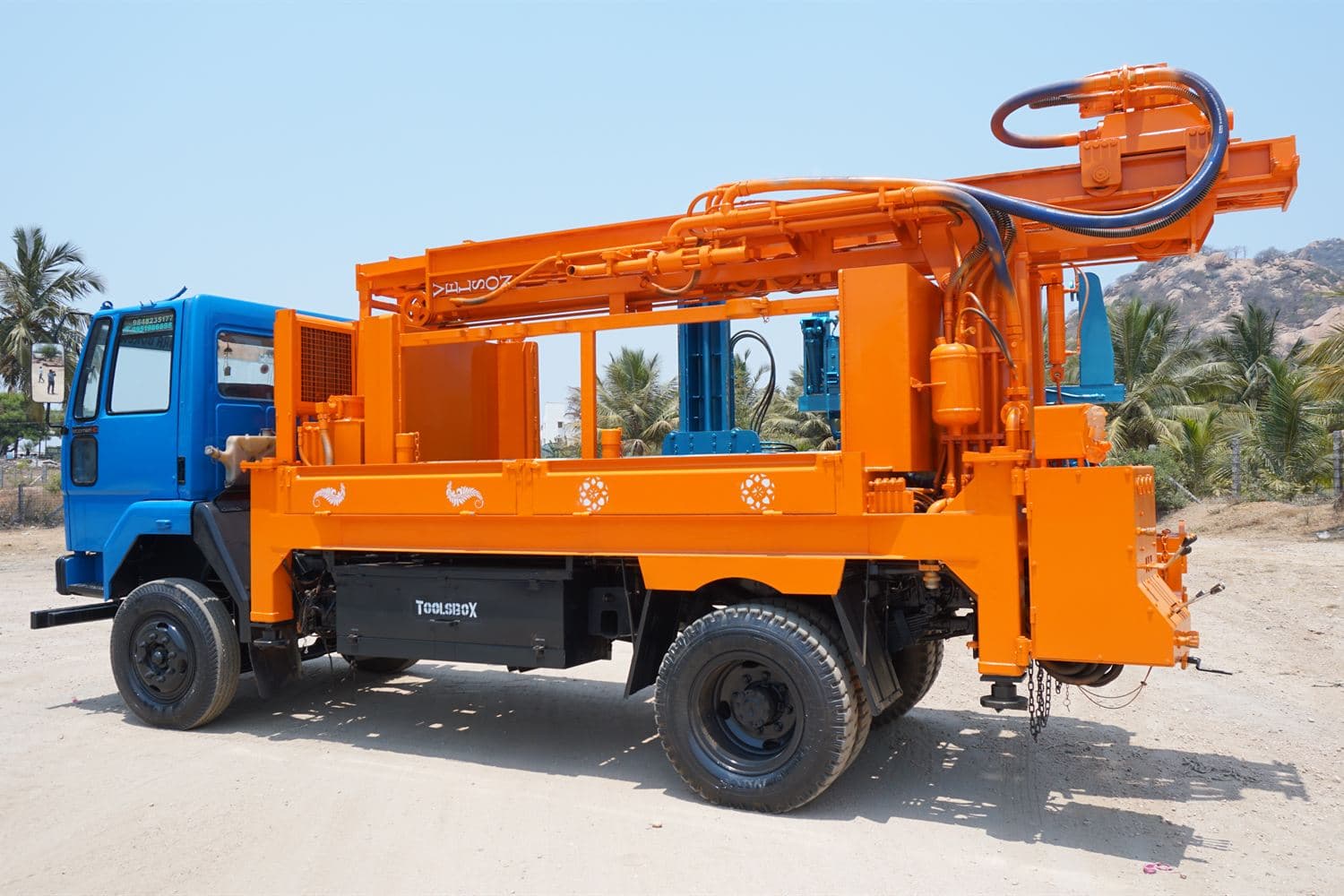

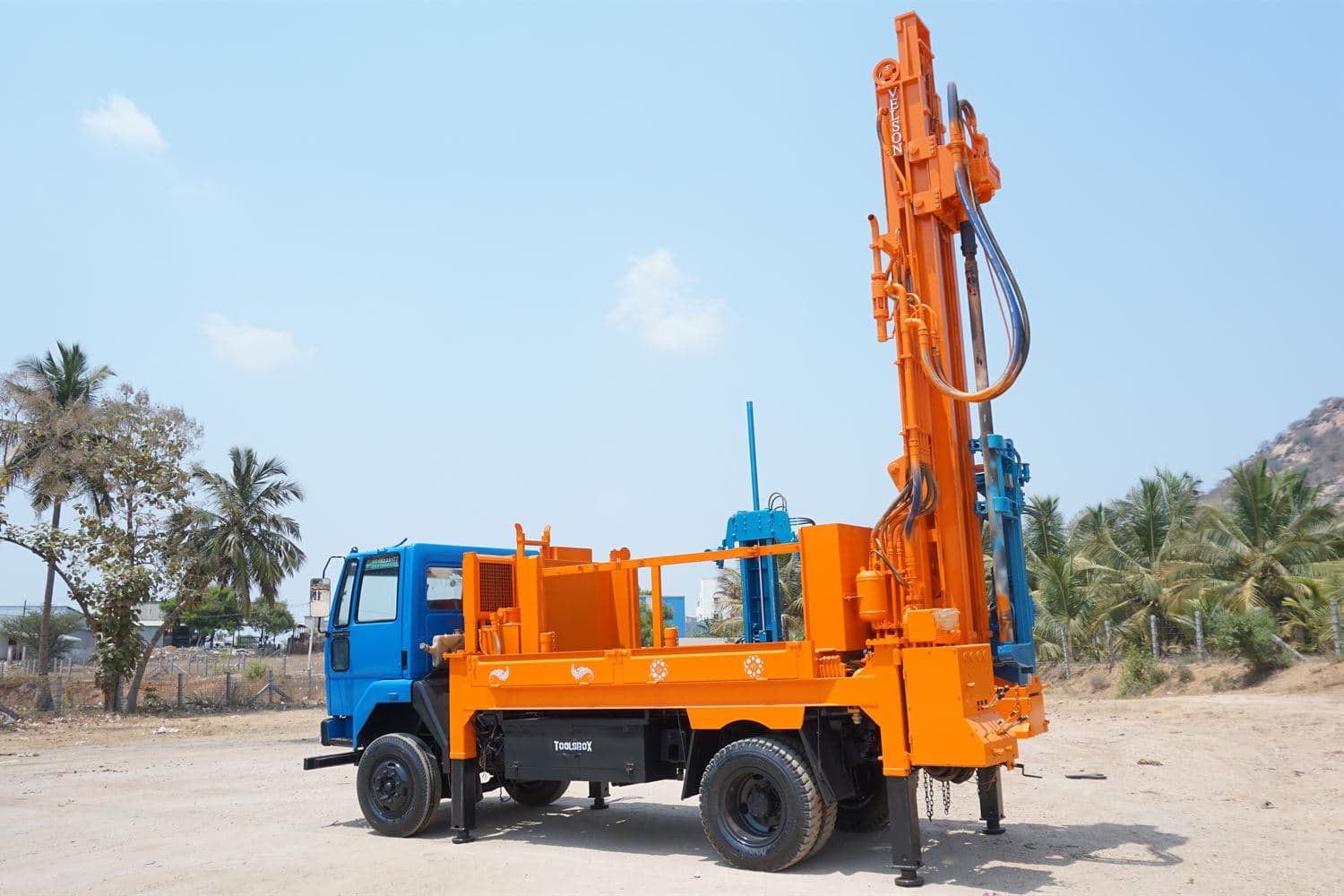

Auto-rod water-well rig on a light commercial vehicle chassis.
V4 platform with an automatic rod-changer system. Operates in manual, wired-remote, or fully automatic mode for 10-ft single-rod handling. Boreholes to 305 m at 6.5″.
- Max Depth
- 305m
- Hole Diameter (min)
- 165mm
- Hole Diameter (max)
- 165mm
- Max Pull-up
- 12500kgf
- Platform
- truck
- Rod Handling
- auto
Full spec sheet
01
Application
- Hole diameter
- 6.5″ borehole
- Guide bed diameter
- 10.5″
- Max drilling depth
- 305 m (1,000 ft)
02
Prime mover
- Chassis
- Truck-mounted on a light commercial vehicle; powered from truck engine
- Engine
- 120 HP @ 2,300 RPM
03
Mast & feed
- Mast
- Box-type structureHeight 5.7 m (18.7 ft)Drill rod length 3.04 m (10 ft)
- Max pull-up force
- 12,500 kgf (123 kN)
- Max pull-up speed
- 25 m/min
- Max pull-down force
- 9,000 kgf (88 kN)
- Max pull-down speed
- 32 m/min
04
Rotary head
- Configuration
- Single hydraulic orbit motor
- Max torque
- 3,800 N·m
- Max rotation speed
- 160 RPM
- Head travel length
- 3.6 m
05
Rod handling
- Rod changer
- 10-ft single-rod handling, auto rod changer
- Rod breakout
- Hydraulic breakout
- Rod storage capacity
- 70 rods (10 ft length)
- Operating modes
- Manual, wired remote, and automatic
06
Hydraulics
- Max system pressure
- 180 kgf/cm² (2,560 psi)
- Hydraulic tank volume
- 400 L (105 gallons)
- Hydraulic oil cooler
- 40 LPM fin-type
07
Water & dust suppression
- Water injection pump
- Triplex reciprocating, hydraulic-motor driven
08
Winches
- Top winch
- 750 kg lifting capacity
