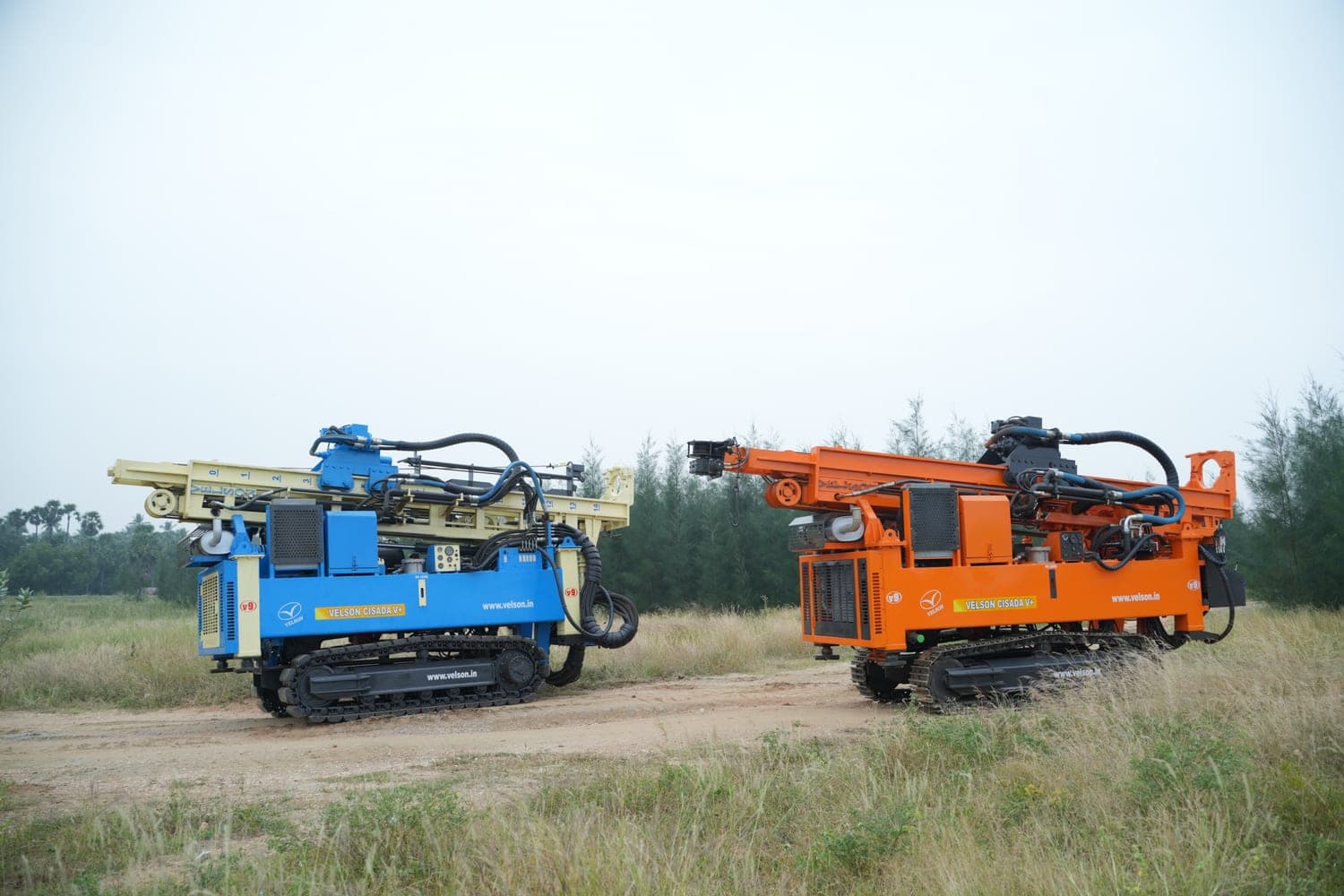

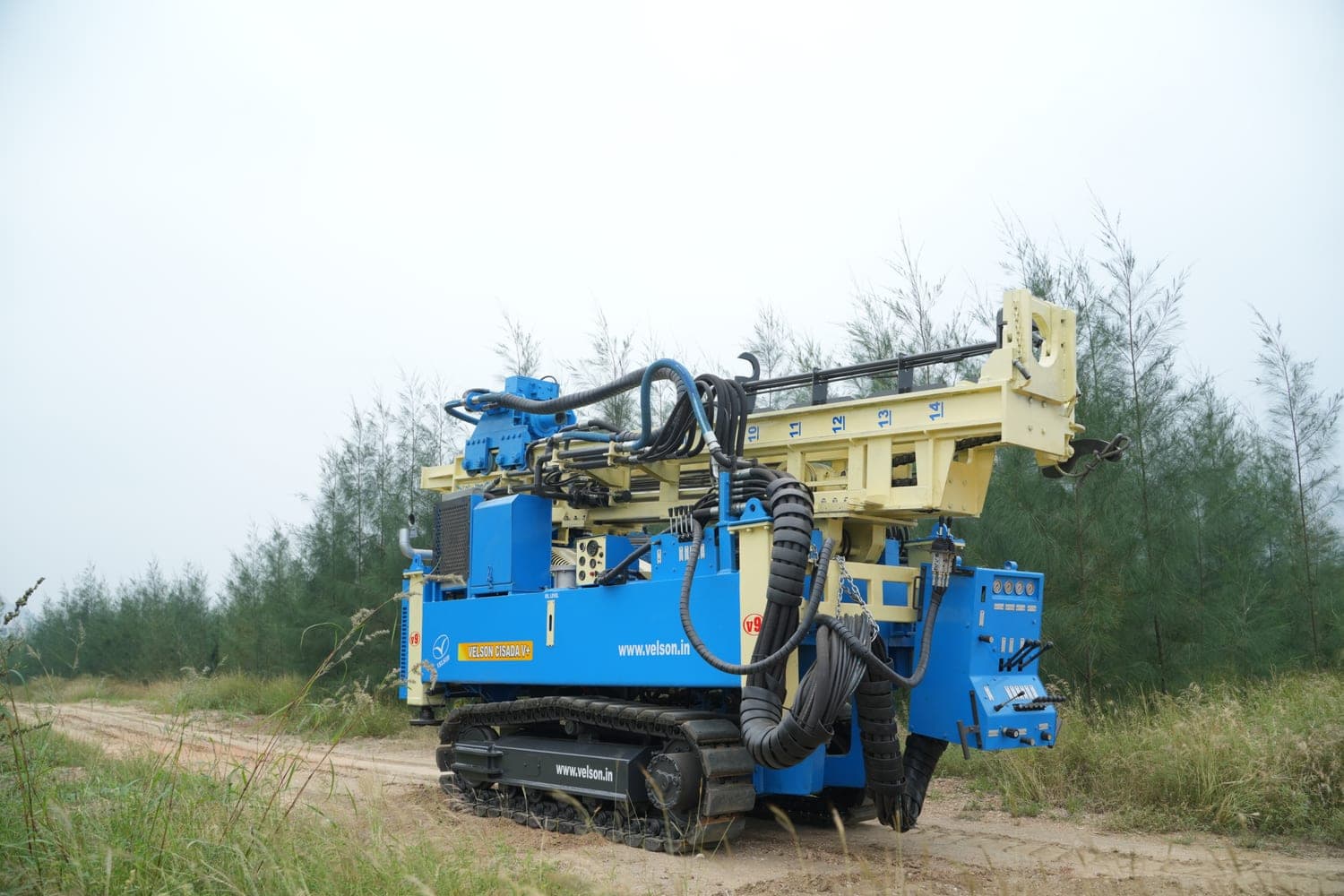

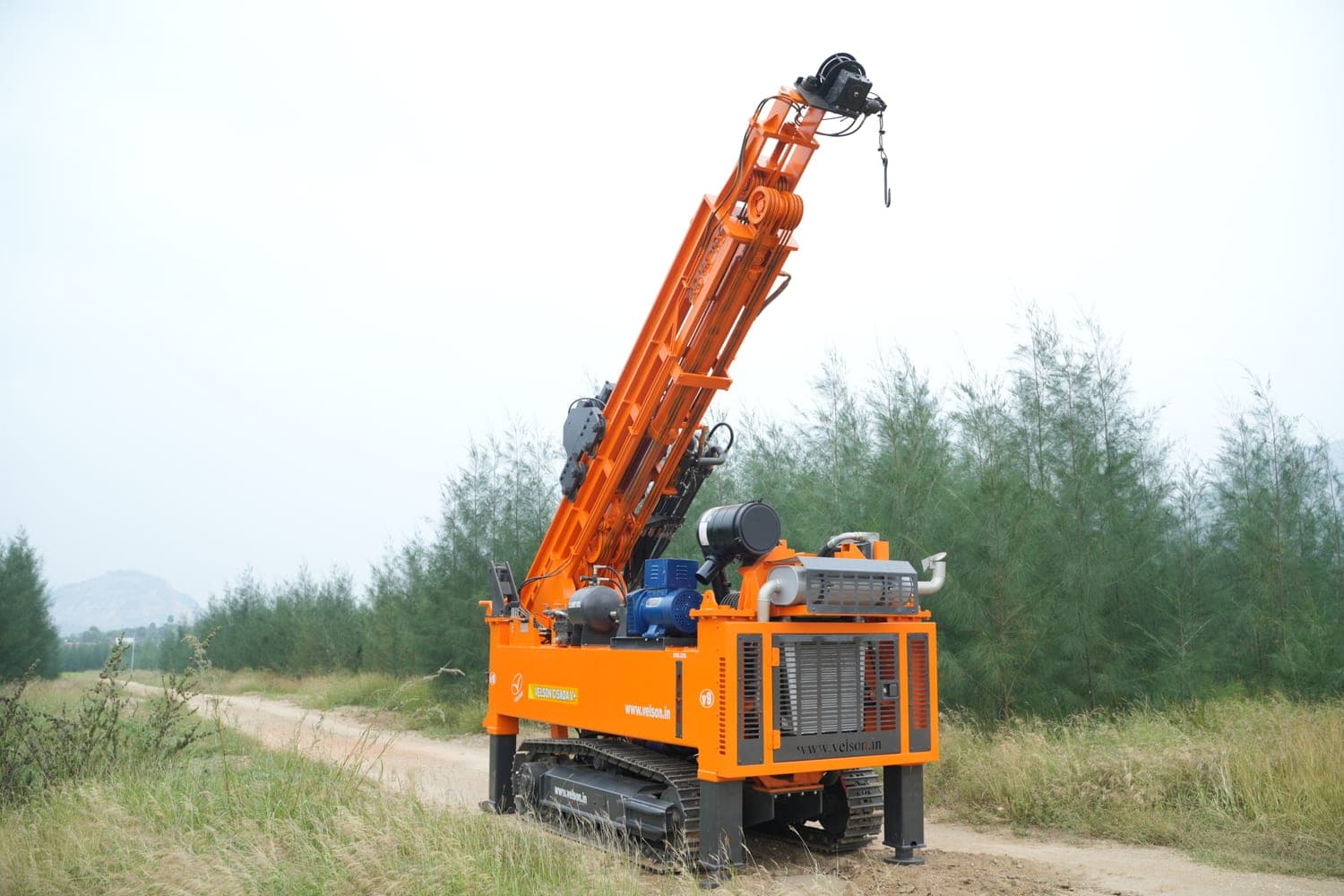

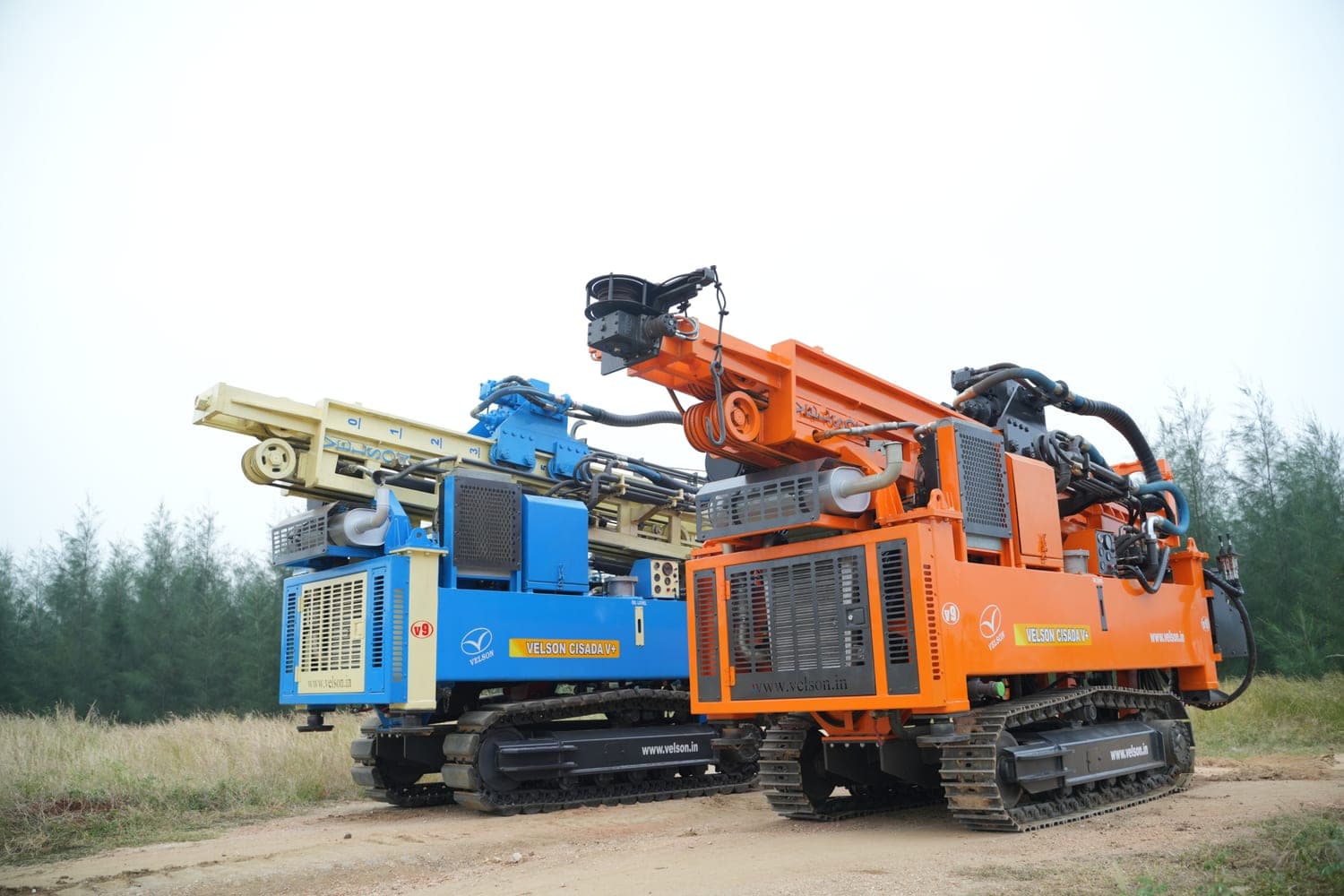

V9 Cisada V+
Heavy-duty crawler rig for gradient terrain.
Crawler-mounted 180HP rig for boreholes 3″–8″ to 450 m depth. Built for hilly water-well work and mud-rotary applications; retro-fit kits available for mud-rotary configuration.
- Max Depth
- 450m
- Hole Diameter (min)
- 76mm
- Hole Diameter (max)
- 203mm
- Max Pull-up
- 12750kgf
- Platform
- crawler
Full spec sheet
01
Application
- Hole diameter
- 3″ to 8″ borehole - DTH
- Max drilling depth
- 450 m (1,475 ft)
02
Prime mover
- Chassis
- Crawler-mounted; deck engine 180 HP @ 2,400 RPM
- Max engine torque
- 660 N·m @ 1,200–1,900 RPM
- PTO
- PTO gear coupled with engine
- Fuel tank capacity
- 180 L
- Travel speed
- 2.5 km/hr
- Gradeability
- 35°
03
Mast & feed
- Mast
- Box-type structureHeight 5.7 m (18.7 ft)Drill rod length 3.04 m (10 ft)
- Drill rod diameter
- 90–125 mm
- Feed system
- Hydraulic cylinder driven steel rope
- Max pull-up force
- 12,750 kgf (125 kN)
- Max pull-up speed
- 32 m/min
- Max pull-down force
- 8,200 kgf (80 kN)
- Max pull-down speed
- 50 m/min
04
Rotary head
- Configuration
- Single hydraulic orbit motor
- Max torque
- 4.0 kN·m
- Max rotation speed
- 145 RPM
- Head travel length
- 3.6 m
05
Rod handling
- Rod breakout
- Hydraulic single-cylinder braking system
06
Hydraulics
- Main pump flow
- 230 LPM @ 1,700 RPM
- Max system pressure
- 200 kgf/cm² (2,850 psi)
- Hydraulic tank volume
- 570 L (150 gallons)
- Hydraulic oil cooler
- Fin-type with hydraulic fan
07
Operator & controls
- Operating panel
- Pilot-operated
08
Safety & stabilisation
- Stabiliser jacks
- Four hydraulic jacks, box-type guide
09
Dimensions & weight
- Length
- 6.1 m
- Width
- 1.55 m
- Height
- 2.475 m
- Total weight
- ≈ 9,100 kg
Custom build, parts, or service for the V9 Cisada V+?
Our team is the team that built the rig. Send a note with your application and we'll route it to engineering.
