V9XL

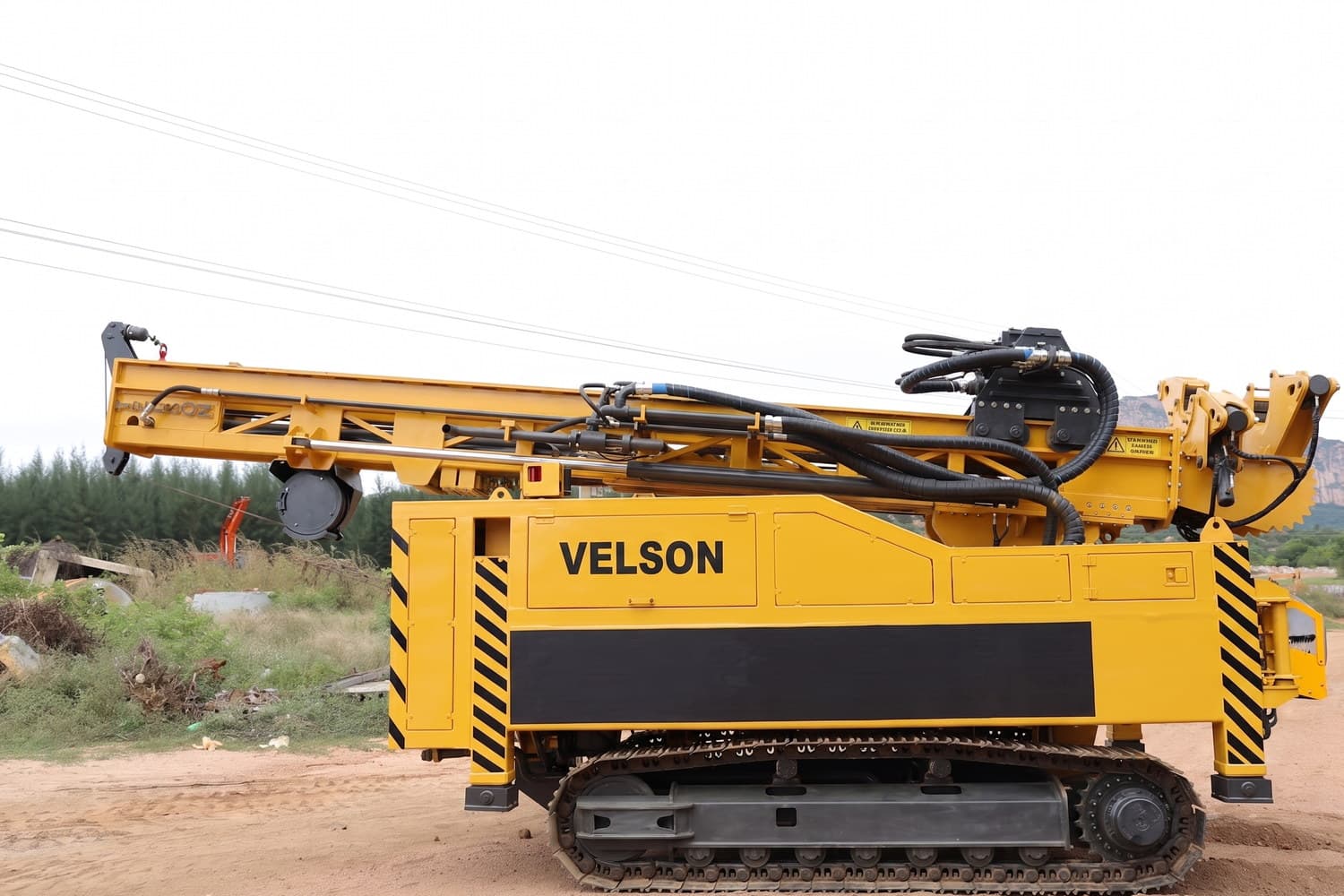

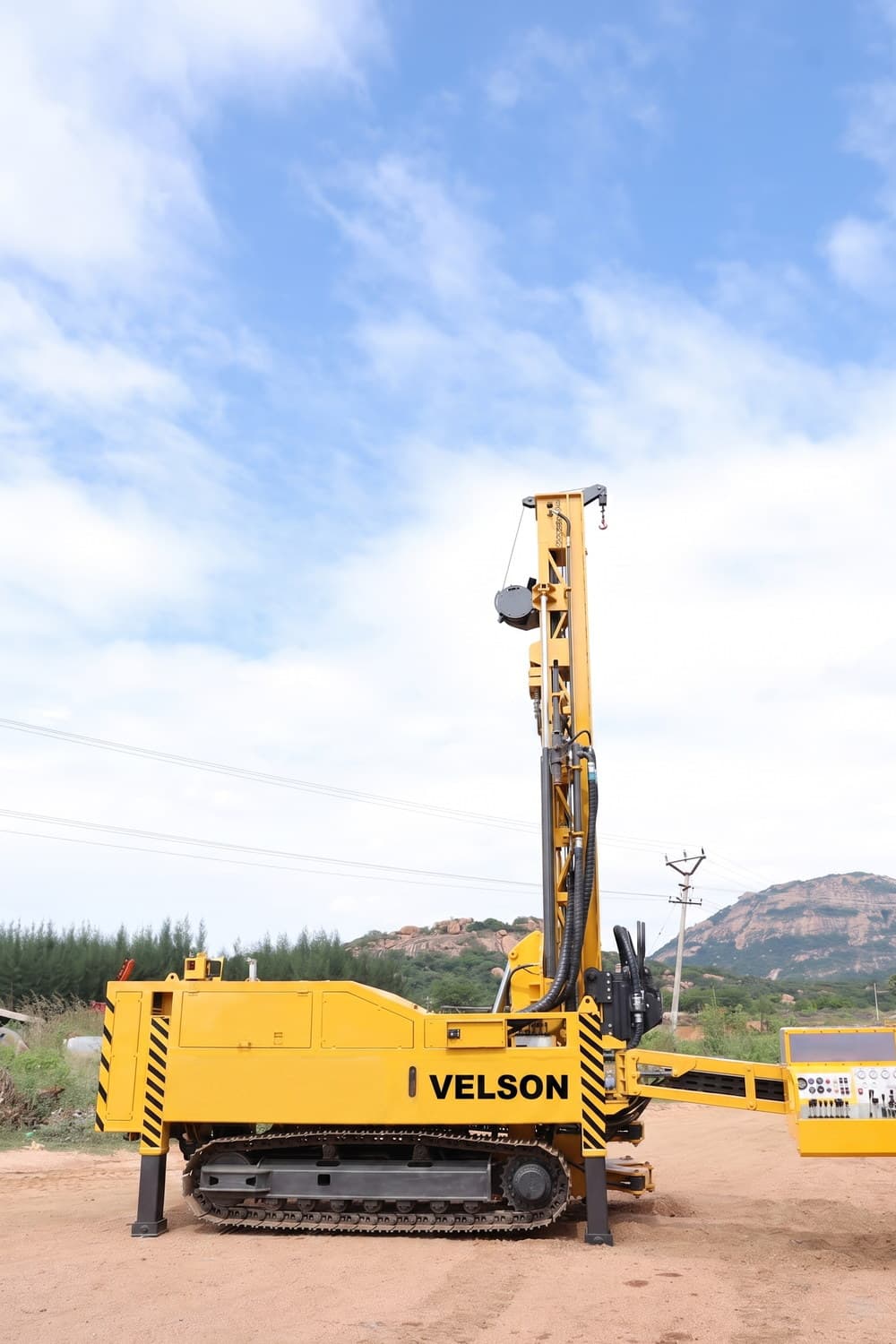

Heavy-duty crawler rig for large-diameter mud and DTH drilling.
Heavy-duty crawler rig with a 180HP deck engine, running both DTH and mud-rotary. Drills 4.5″–12″ boreholes to 450 m by DTH, and up to 350 mm (13.77″) to 100 m with mud circulation. A twin-motor rotary head, 7.6 m heavy-duty mast, and four-corner stabilisers carry the 15-ton build across gradient terrain.
- Max Depth
- 450m
- Hole Diameter (min)
- 114mm
- Hole Diameter (max)
- 600mm
- Max Pull-up
- 19000kgf
- Platform
- crawler
Full spec sheet
01
Application
- Hole diameter
- 4.5″ to 12″ borehole - DTH350 mm (13.77″) borehole - DTH600 mm borehole - rotary with mud circulation
- Max drilling depth
- 450 m (1,475 ft) at 4.5″–12″ by DTH100 m (330 ft) at 350 mm by DTH100 m (330 ft) at 600 mm by mud rotary
02
Prime mover
- Chassis
- Crawler-mounted; deck engine 180 HP @ 2,400 RPM
- Max engine torque
- 660 N·m @ 1,200–1,900 RPM
- Fuel tank capacity
- 180 L
- Travel speed
- 2.5 km/hr
- Gradeability
- 35° @ mast rest condition
03
Mast & feed
- Mast
- Heavy-duty box-type structureHeight 7.6 mDrill rod length 3.04 m (10 ft)
- Drill rod diameter
- 90–152 mm
- Feed system
- Hydraulic cylinder driven steel rope and chain
- Max pull-up force
- 19,000 kgf (186 kN)
- Max pull-up speed
- 20 m/min
- Max pull-down force
- 12,000 kgf (118 kN)
- Max pull-down speed
- 30 m/min
04
Rotary head
- Configuration
- Two hydraulic orbit motors - mud with DTH type
- Max torque
- 5.6 kN·m
- Max rotation speed
- 145 RPM
- Head travel length
- 4.7 m
05
Rod handling
- Rod breakout
- Hydraulic foot clamp with braking systemClamping range 89–300 mm
06
Hydraulics
- Main pump flow
- 230 LPM variable-displacement pump
- Auxiliary pump
- Fixed-displacement gear pump
- Max system pressure
- 200 kgf/cm² (2,850 psi)
- Hydraulic tank volume
- 610 L (160 gallons)
- Hydraulic oil cooler
- Fin-type with hydraulic fan
07
Operator & controls
- Operating panel
- Mounted in rear corner
08
Safety & stabilisation
- Stabiliser jacks
- Four hydraulic jacks, box-type guide
09
Dimensions & weight
- Length
- 7.6 m
- Width
- 2.5 m
- Height
- 3.35 m
- Total weight
- ≈ 15,000 kg
10
Optional equipment
- Other features
- 4-ton top winchAnalog level indicatorsSpirit level on mastMast restFoldable control-box coverPowder-coated finish
