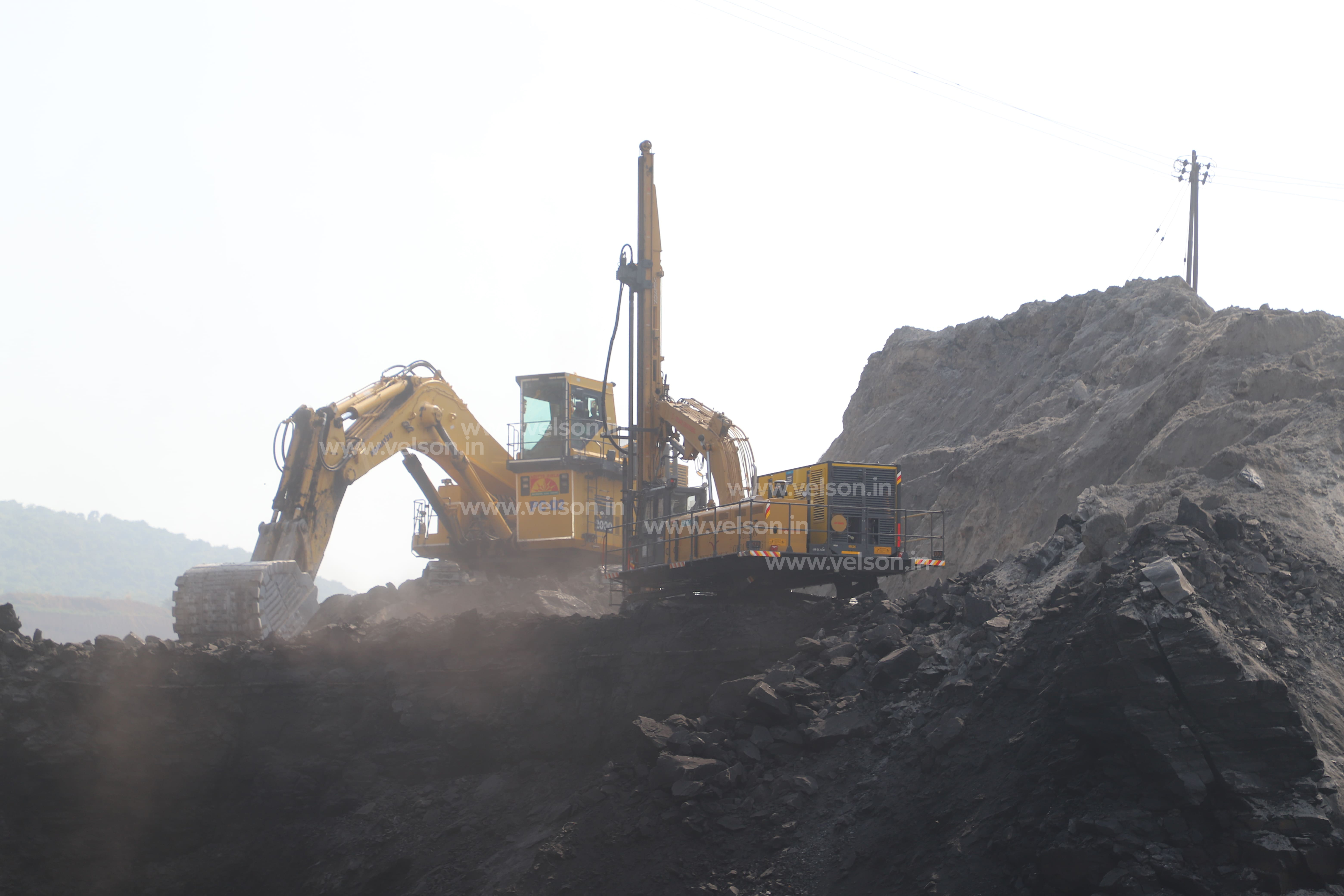

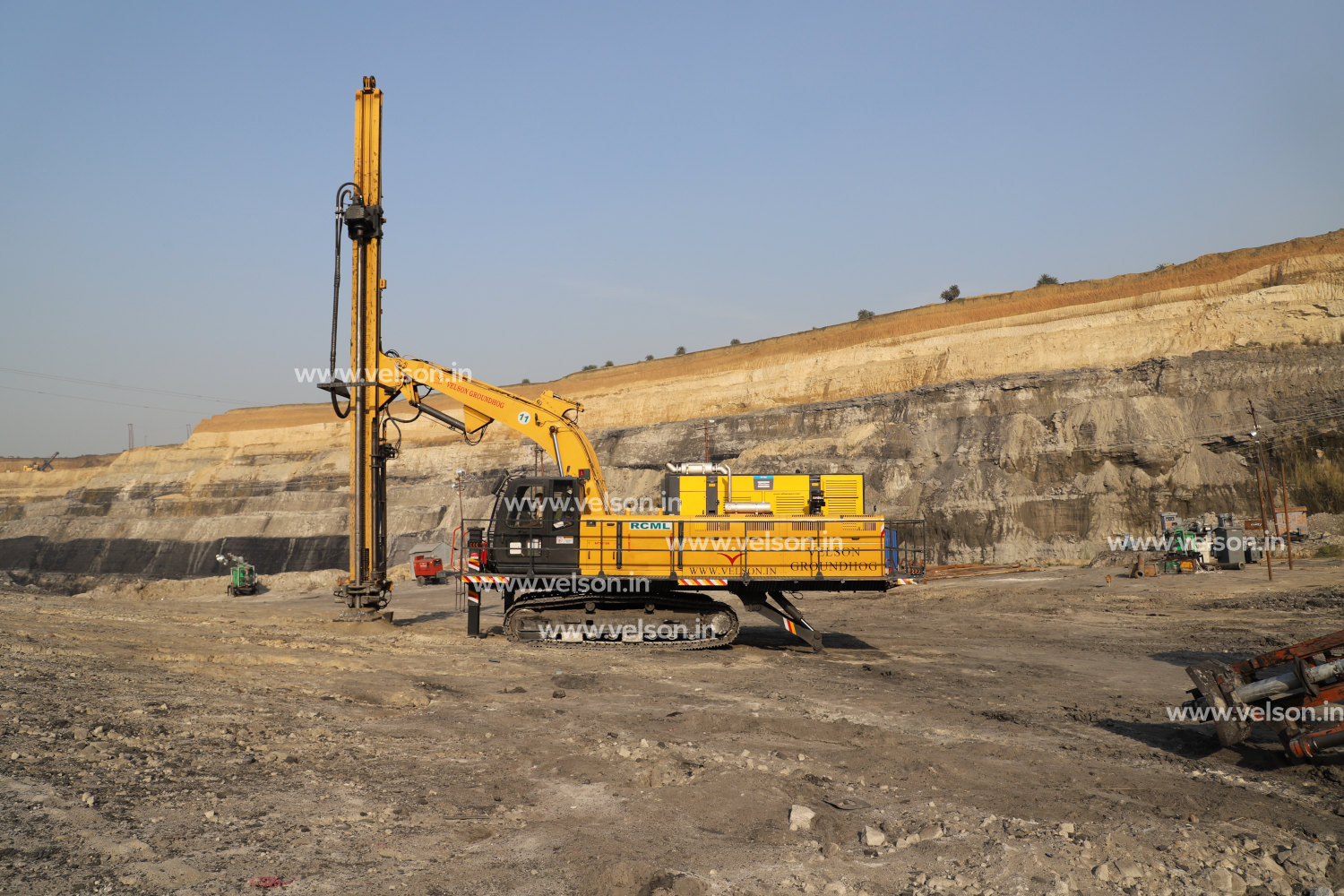

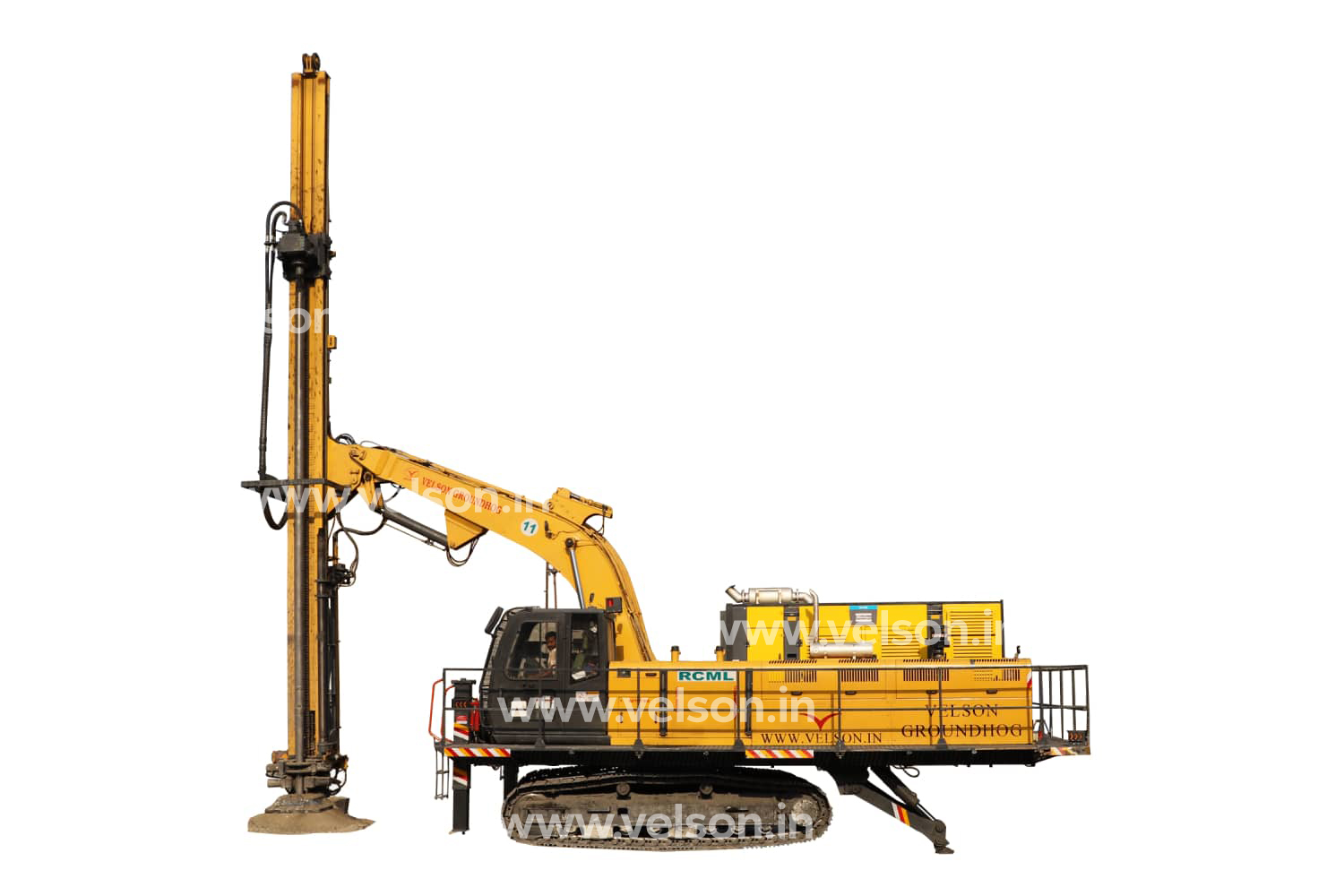

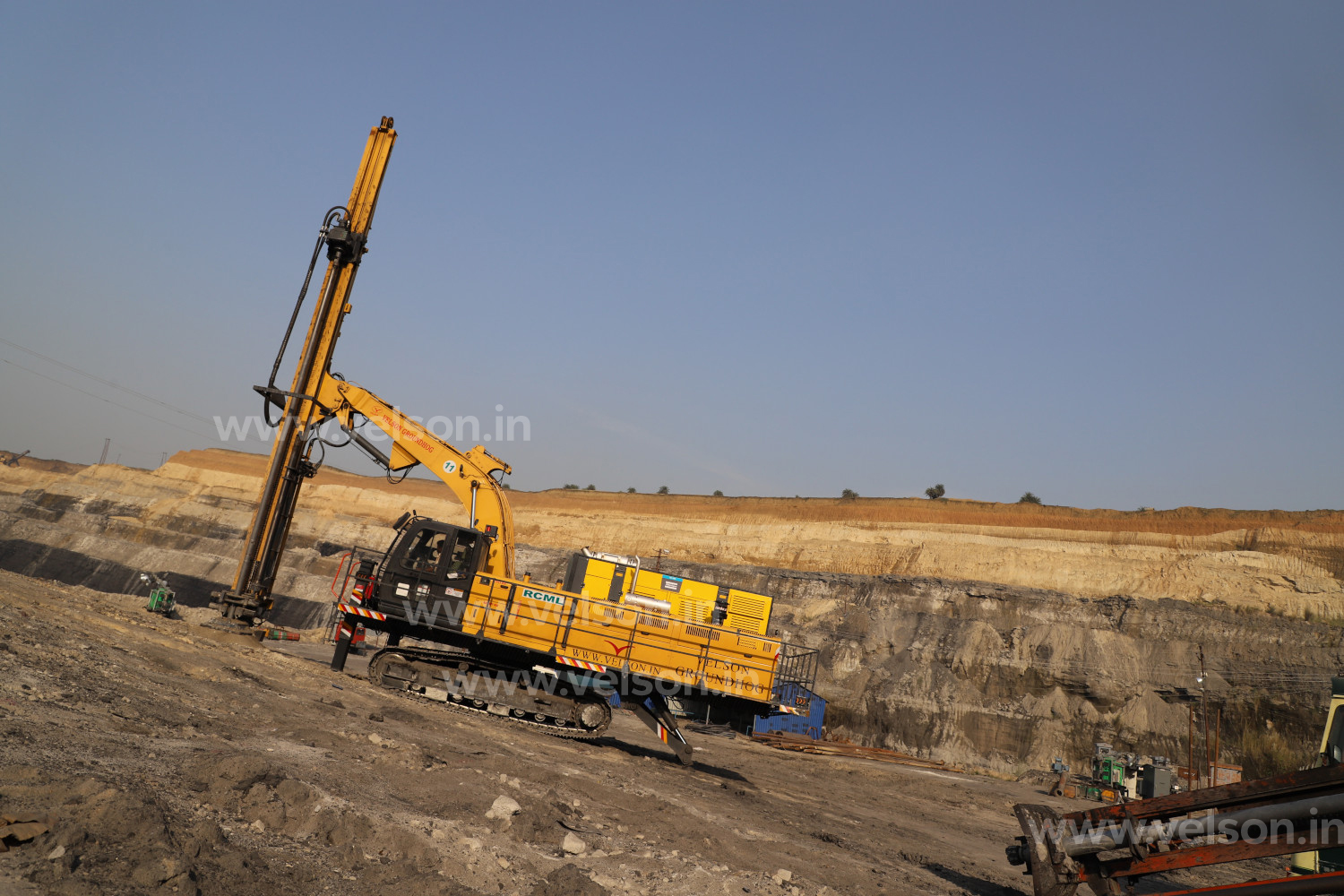

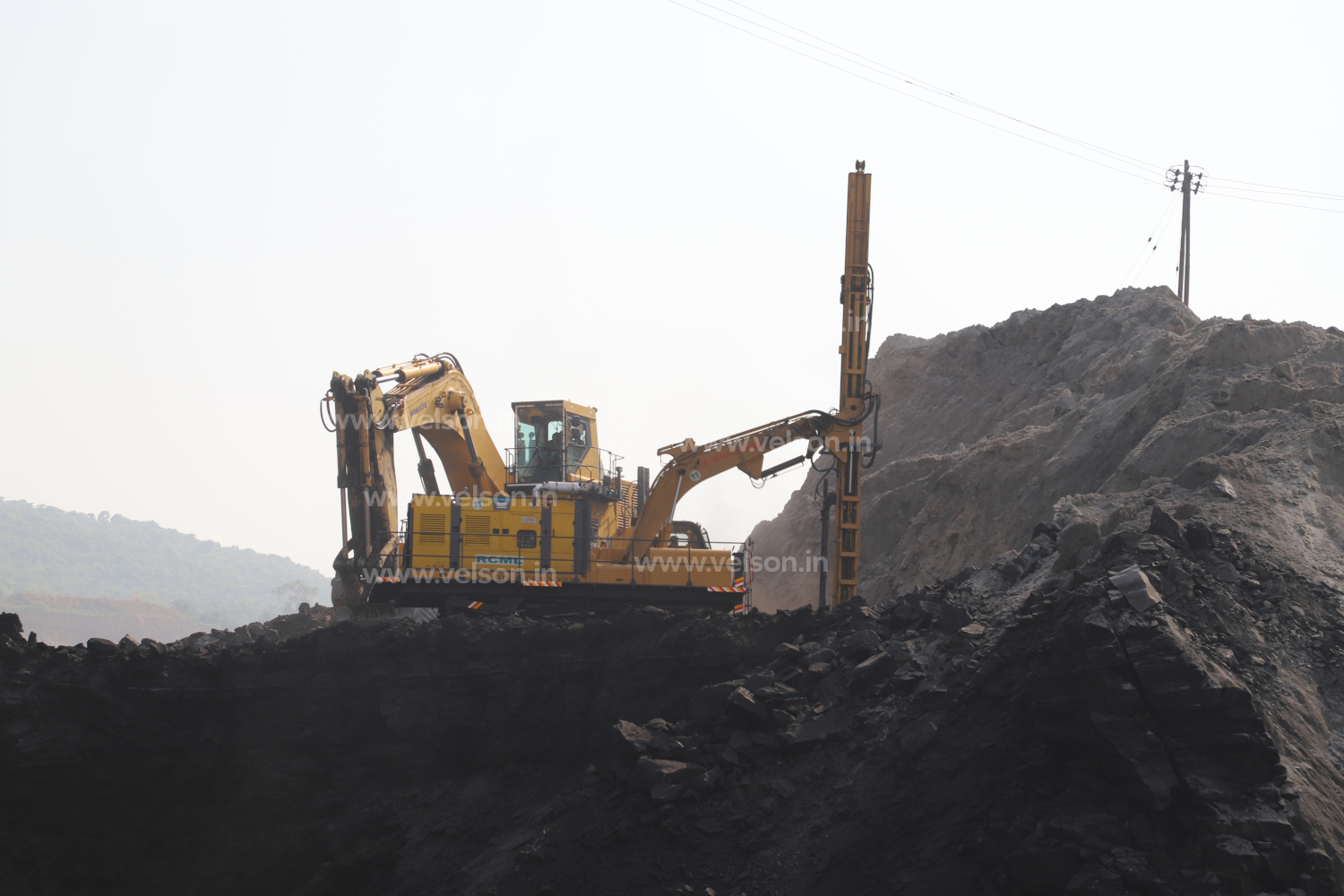

Blast Hole drill Machine - V10 Gound Hog
1
2
3
4We can provide the latest Blast hole drill machine with proven technology to all sizes of mining operations; from one rig short-term projects to multiple rigs with multiple drilling techniques.
Product Description
| Blast Hole Drill - VELSON V10 Gound Hog | |
|---|---|
| Application | - Blast Hole Drill |
| Hole Diameter | - 3” to 8” (75mm to 200 mm) |
| Type of Drill | - Down the Hole (DTH) |
| Depth | - 100 mtr’s |
| Rod Handling Capacity | - 9 mtr Single Stroke |
| Drill Rod Diameter | - 60 mm to 115 mm |
| Rod Changer | - Single Rod with Hydraulic Tilting (6 mtr) |
| MAX.PULL UP FORCE | - 6000 kg’s |
| MAX.PULL DOWN FORCE | - 3500 kg’s |
| MAX.PULL UP SPEED | - 40 mtr/min |
| MAX.PULL DOWN SPEED | - 70 mtr/min |
| Rotation Torque | - 380 kg-mtr’s |
| Rotation Speed | - 140 RPM |
| Feed System | - Hydraulic Cylinder Driven Steel Rope & Chain System |
| Hydraulic Power | - Excavator |
| MAX. Hydraulic Pressure | - Pressure at Drilling Operation 210 kg/cm2 |
| Required Drilling Flow in Hydraulic | - 150 Lpm |
| Compressor On/Off | - Inside the Operator Cabin |
| Compressor | - On Board |
| Compressor Diesel Tank Capacity | - 1050 Liters |
| Excavator | - 20 Ton Class |
| Operating Panel | - Inside Operator’s Cabin |
| Rear View | - Rear Camera with display |
| Water Flow Capacity | - 0 to 12 Lpm |
| Required Volume of Water | - 1000 Cfm Compressor need 2.5 Liters - Per Minute is sufficient to Control the Dust |
| Water Tank Capacity | - 1600 Liters |
| Foot clamp | - Hydraulic operated |
| Stabilizer | - Level Stabilizer for four corners |
| Angle Indicator | - Digital Angle Display (X & Y) |
| Foot clamp | - Hydraulic operated |
| Safety | |
|---|---|
| Fire control system | - Automatic Fire suppression system |
| Emergency shut down | - Emergency shutdown switches in four - corners and in operator cabin |
| While Drilling | - Track will be Locked in same Position |
| Marching Alert | - Buzzer with Blinking Light |
| Operator Seat Belt | - Yes |
| Machine Dimension | |
|---|---|
| Length | - 8200 mm |
| Width | - 4200 mm |
| Height ( At drill rest condition) | - 3950 mm |
