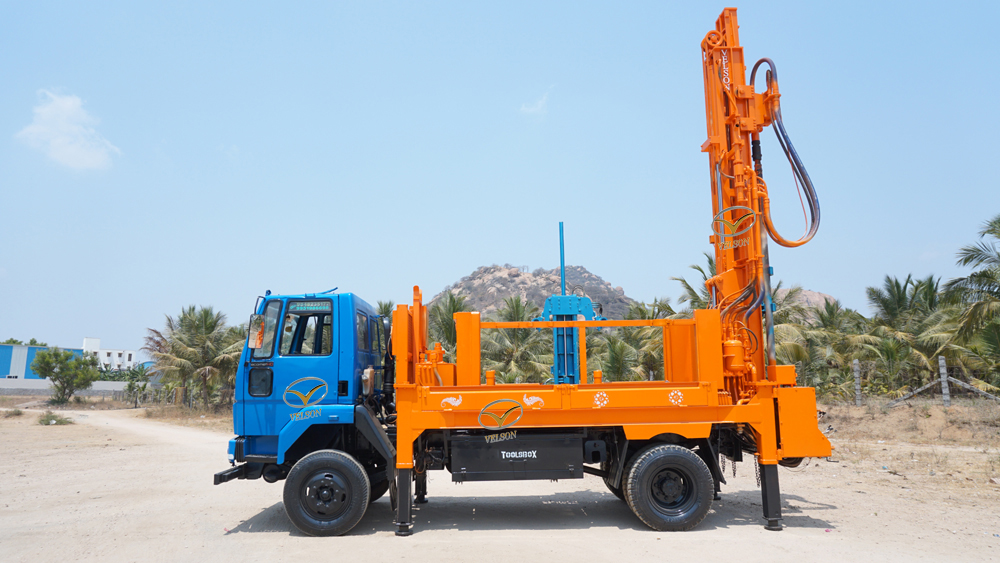

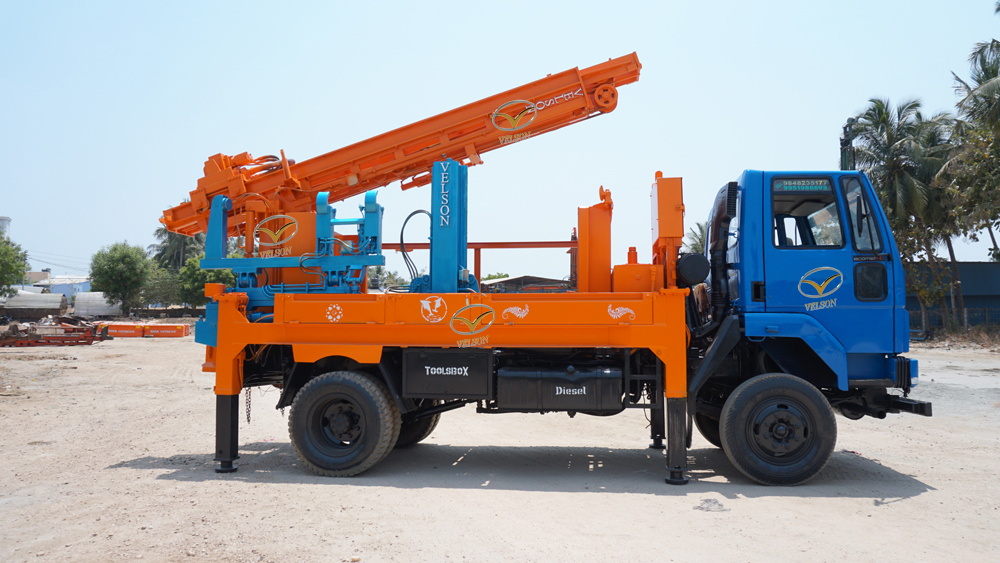

Water Well Rigs - V4 I

1 2

The drill rig having automatic rod changer system. It can work with minimum manpower requirement and ensures maximum profitability in terms of time, value and money.

Application

: 6.5” borehole to a depth of 305mtr

Prime Mover

: Truck Mounted Rig with Power from Truck Engine

MAST

: Box Type Structure
: Height – 5.7 mtr (18.7 ft)



: Rod Handling Capacity – 3.04 mtr(10 ft)

MAX. PULL UP FORCE

: 12500kgs

MAX. PULL UP SPEED

: 25mtr/min

MAX. PULL DOWN FORCE

: 9000 kgs

MAX. PULL DOWN SPEED

: 32 mtr/min

Hydraulic System

: 180 kg/cm2

Hydraulic Oil Volume

: 105 Gallon

Hydraulic Oil Cooler

: 40 LPM Fin Type Cooler

Rotary Head

: Rotary Head Powered by One Hydraulic Orbit Motor



: Max Torque – 3800 NM



: Max Speed – 0 to 160 rpm

Rotary Head Travelling length

: 3600 mm

Water Injection Pump

: Triplex Reciprocating Pump Powered by
Hydraulic Motor

Breakout

: Hydraulic Breakout

Rod Storage Capacity

: 70. Nos(10 Feet Length)

Rod Changer
Operating Option

: 10 ft Single Rod Handling Auto Rod Changer
: Manual, Wired Remote and Automatic

Top Winch

: 750 kgs (lifting load capacity)
