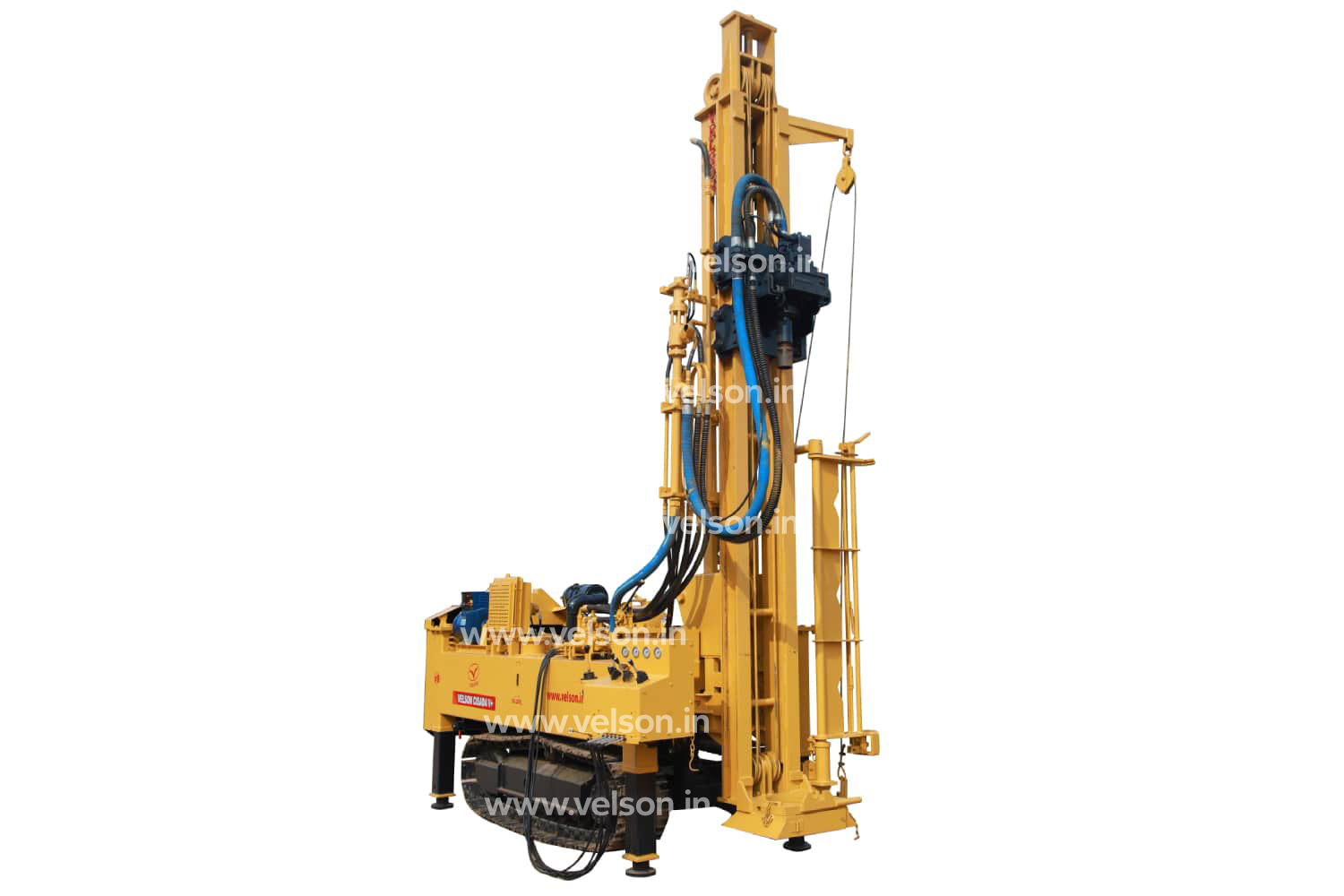

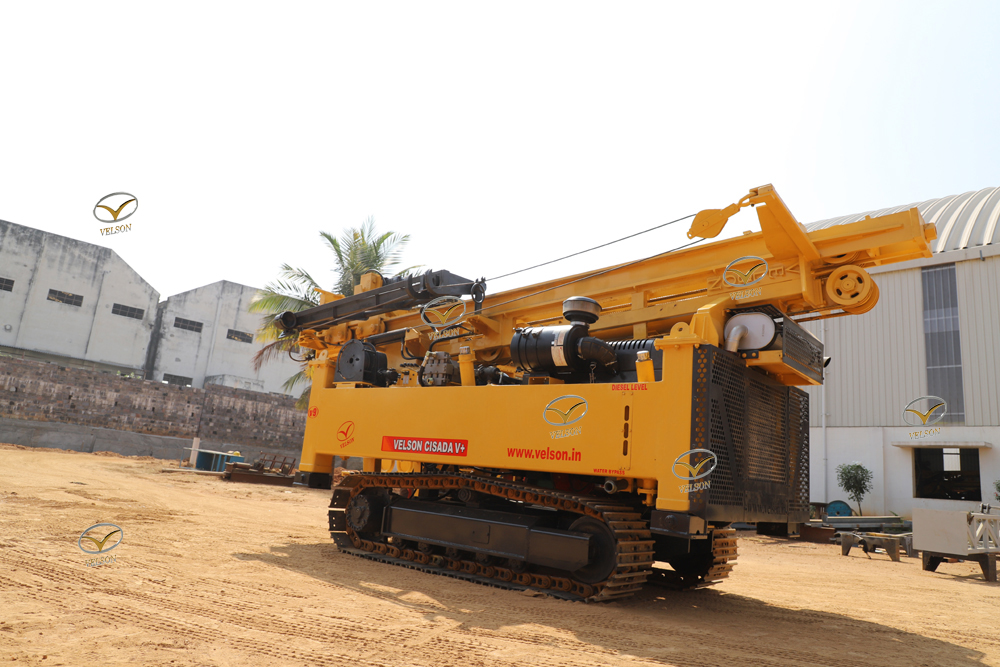

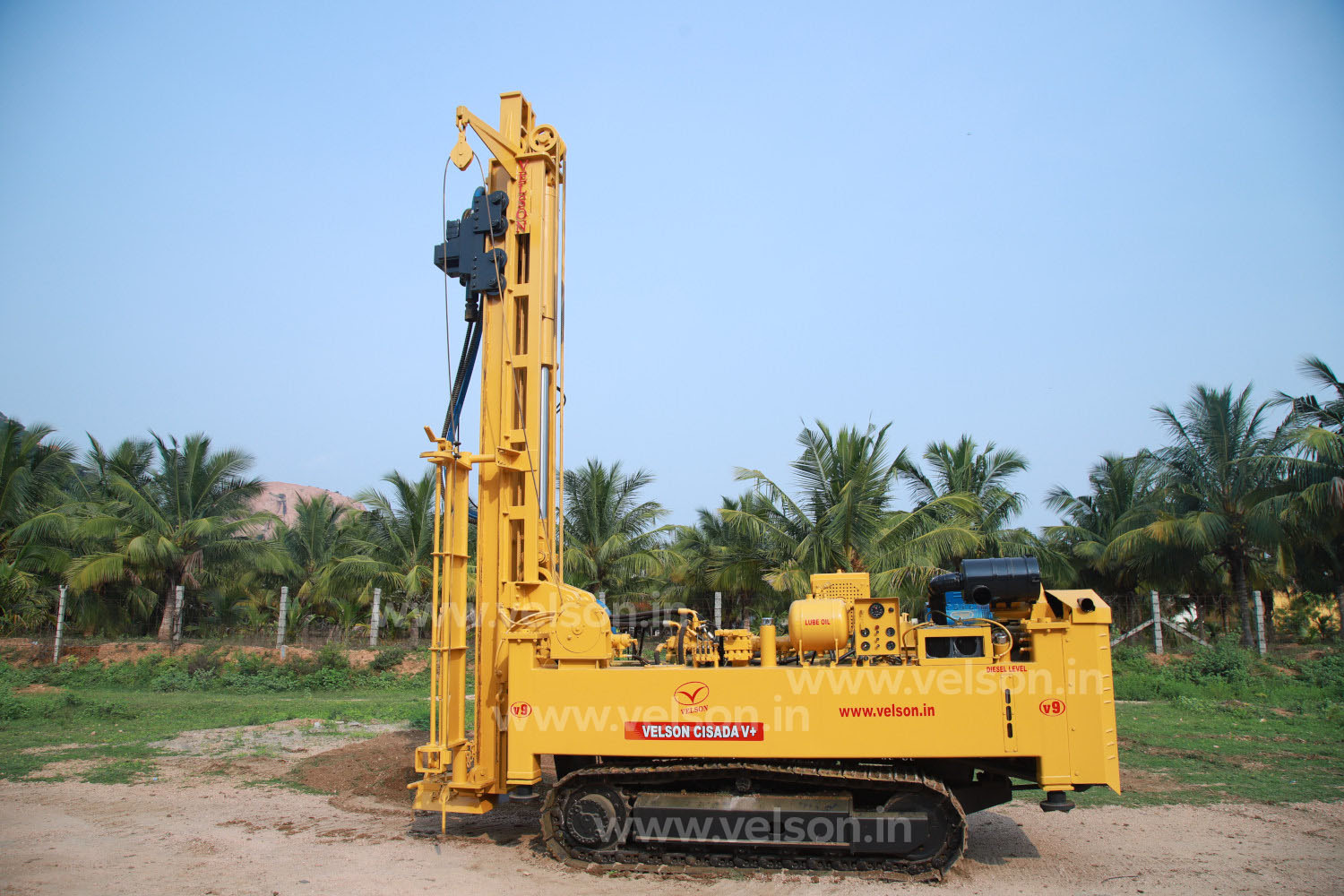

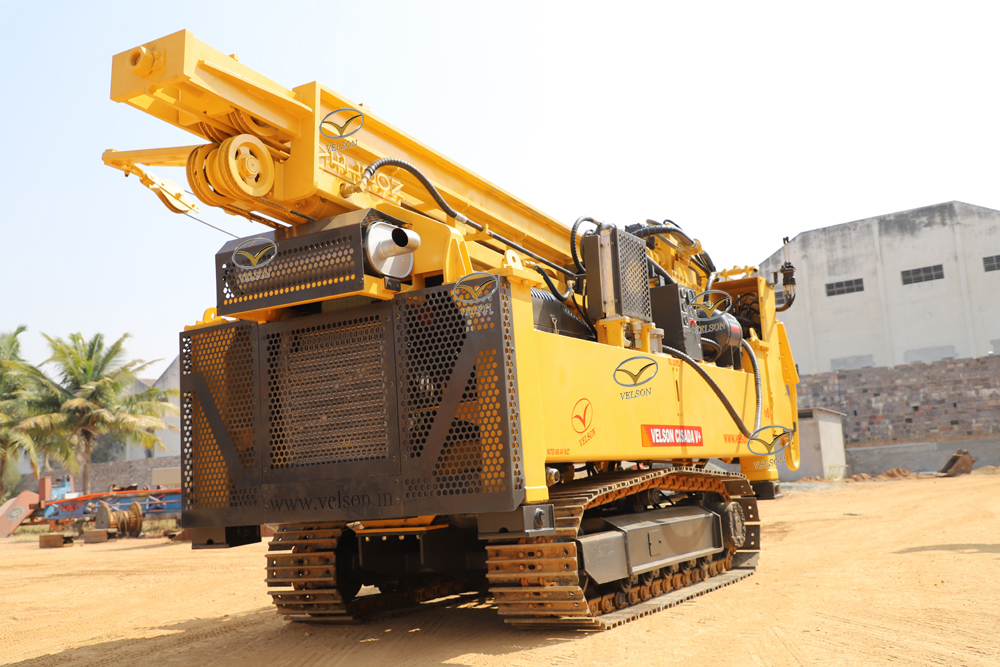

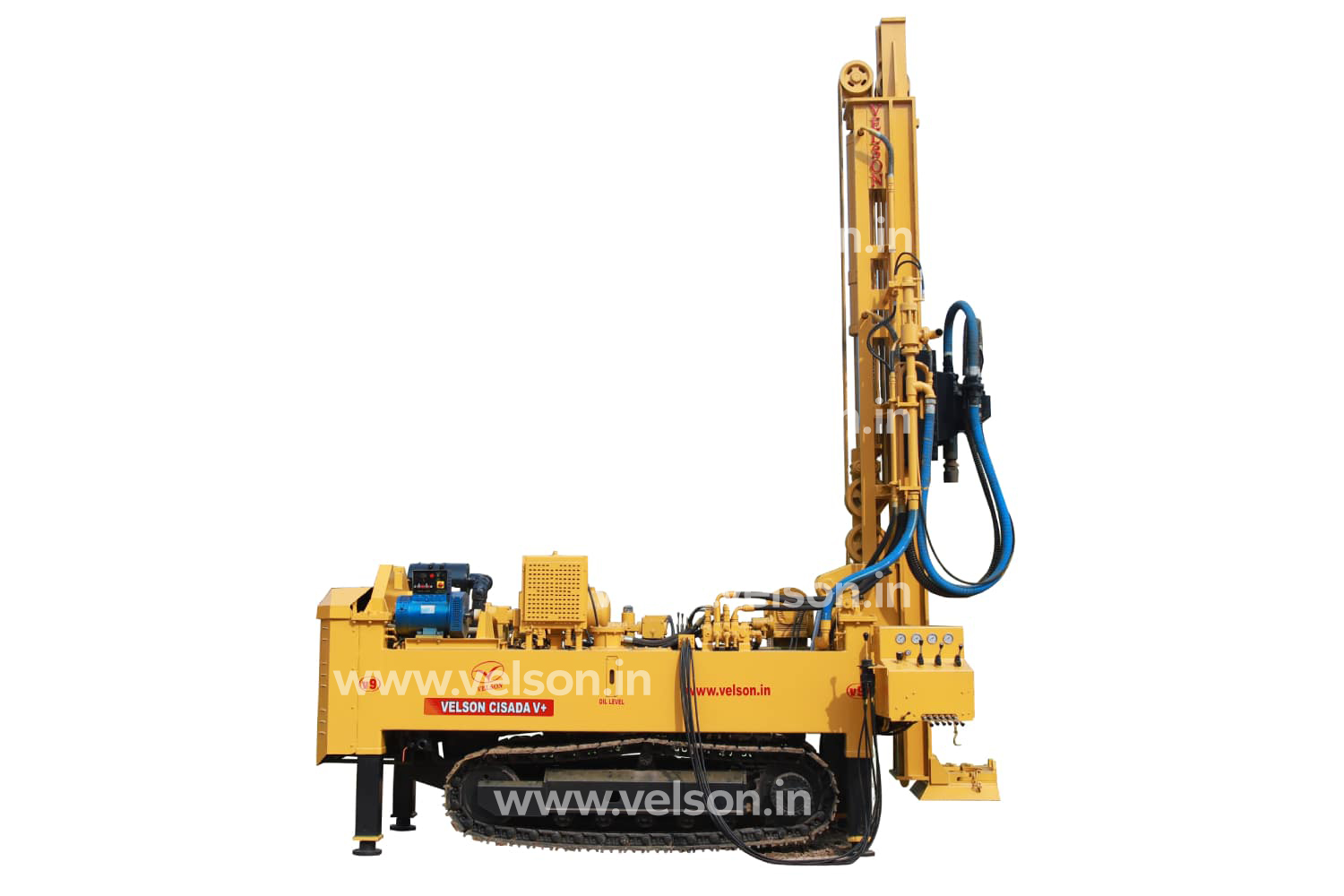

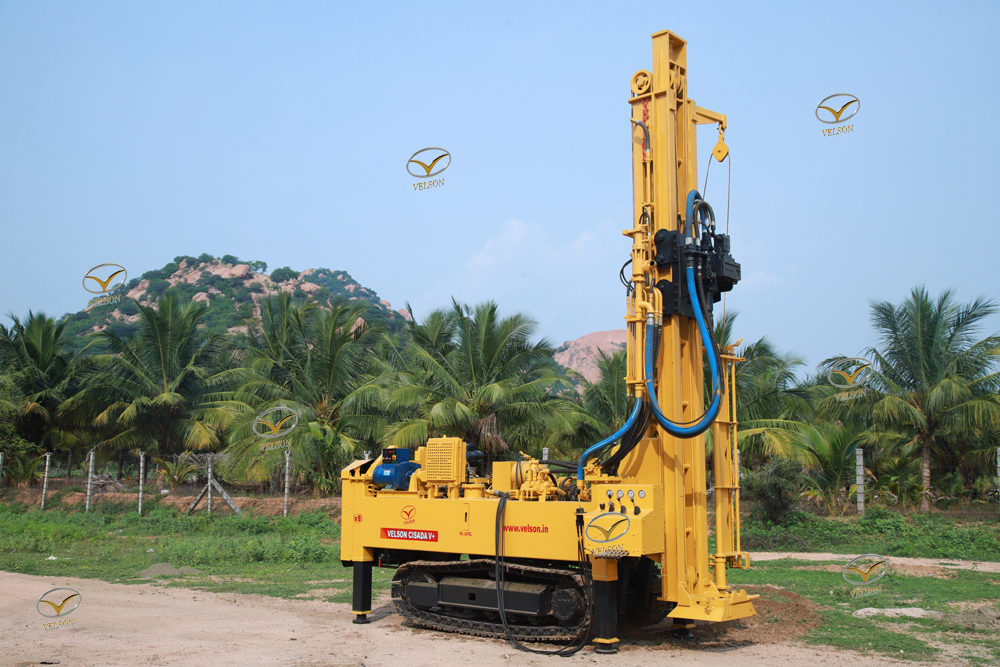

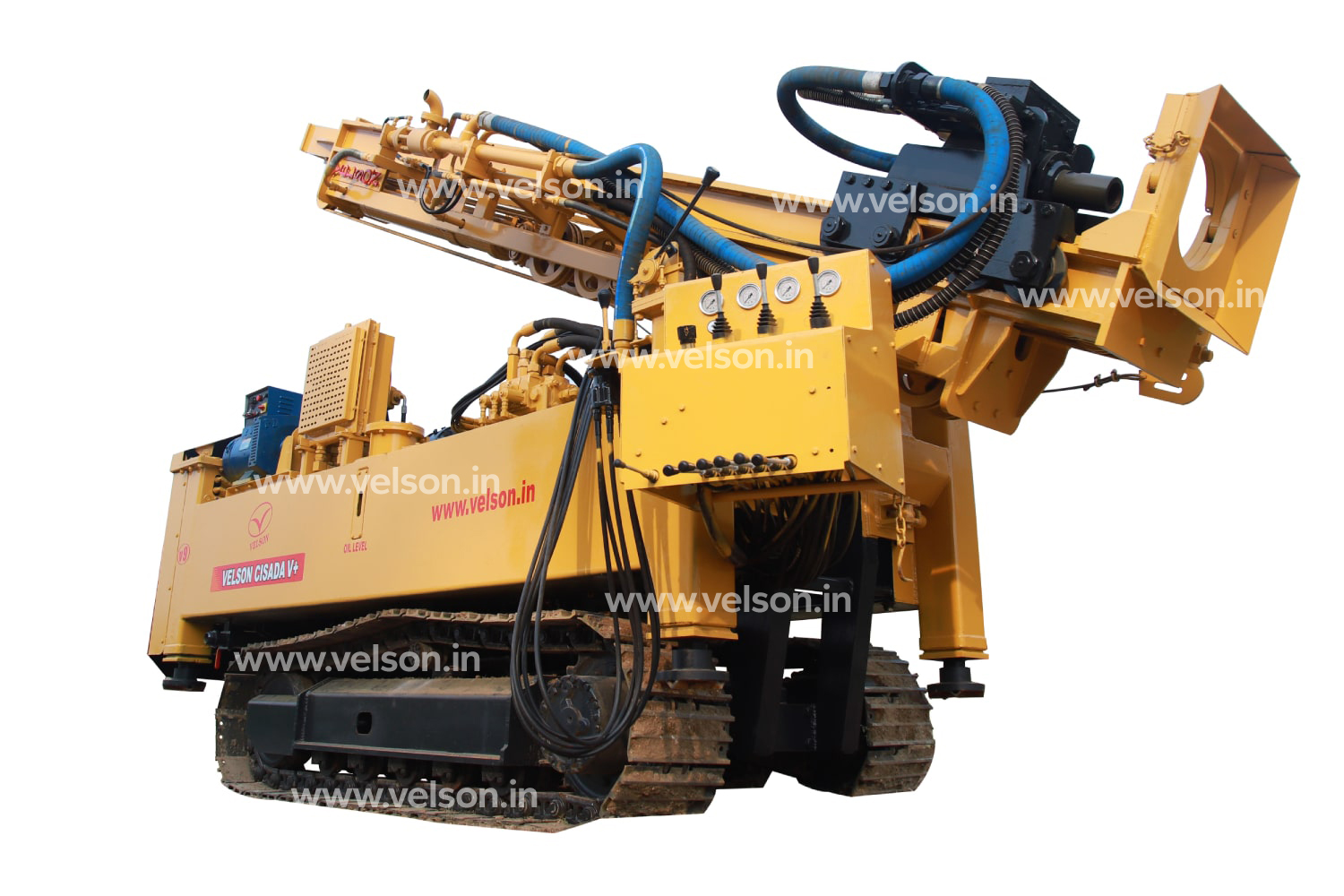

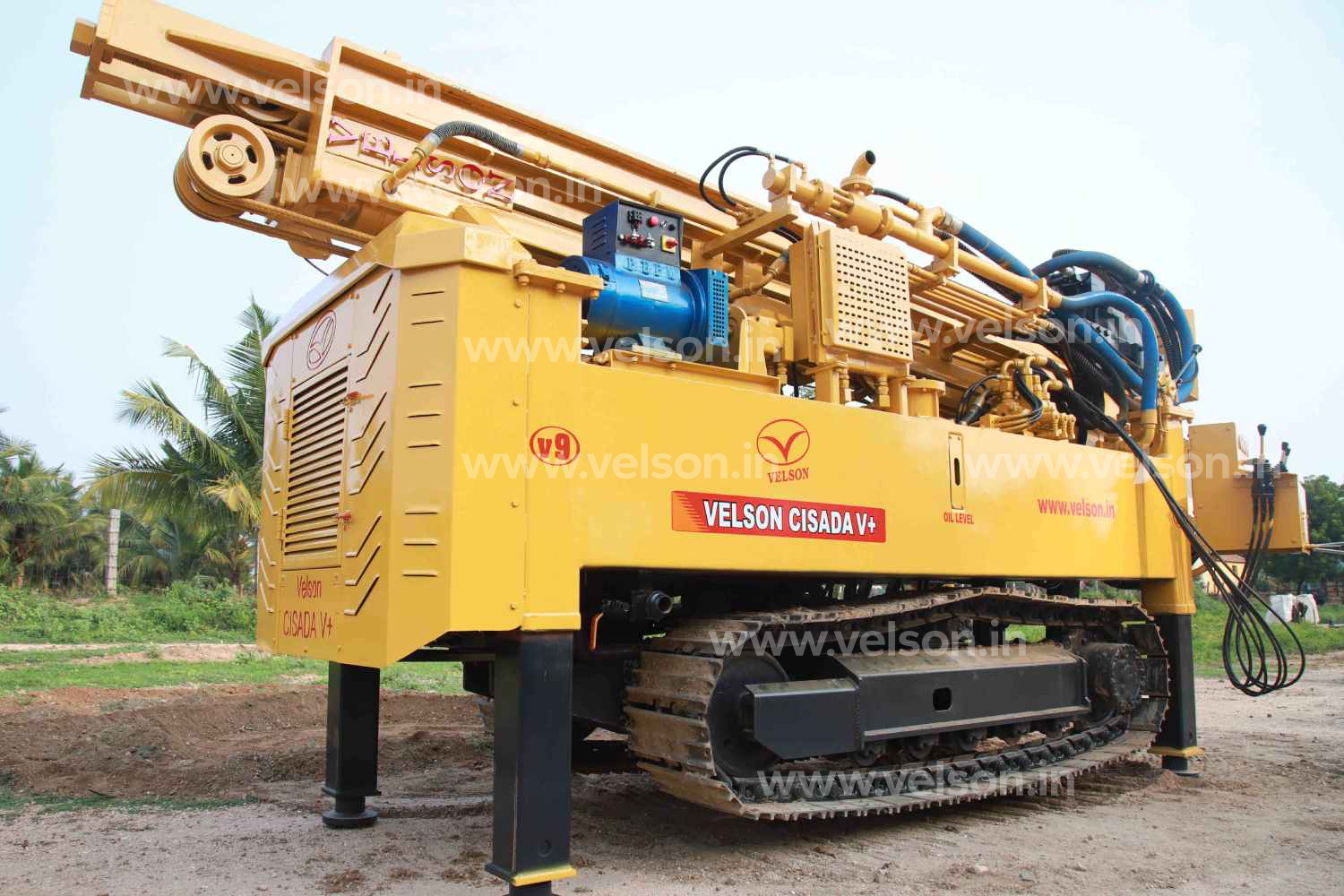

4The Crawler drilling rig is very much useful for hilly application and heavy up and down operations. The applications are water-well and mud rotary. The mud rotary can perform with required retro fitment systems.
Product Description
| Water Well Rigs - VELSON V+ | |
|---|---|
| Application | - 3”to 8” borehole to a depth of 450 mtr DTH drill |
| Prime Mover | - PRIME MOVER Crawler Mounted Rig with Power from Deck Engine 180HP @ 2400 RPM |
| MAX. Torque | - 660 NM @ 1200-1900 RPM |
| Fuel Tank Capacity | - 120 Liters |
| Turning Radius | - 00 Degree |
| Travel Speed | - 2.5 Km/hr |
| Travel Grade-ability | - 350 Degree |
| Drilling Rod Diameter | - 90 mm to 115 mm |
| Rod Brake Out | - Hydraulic Single Cylinder Braking System |
| MAST | - Standard Mast, Box Type Structure, - Height -5.7 mtr(18.7 ft) - Rod Handling Capacity - 3.04 mtr(10 ft) |
| Rotary Head | - Rotary Head powered by one Hydraulic Orbit Motor - Max Torque – 3.8KN - Max Speed – 145 RPM |
| Rotary Head Travel Length | - 3600 mm |
| Feed System | - Hydraulic Cylinder Driven Steel Rope System |
| Pull UP & Pull DOWN | - MAX Pull up Force – 12750 kg’s - MAX Pull up Speed – 32 mtr/min - MAX Pull down Force – 8200 kg’s - MAX Pull down Speed – 50 mtr/min |
| PTO | - PTO Gear coupled with Engine |
| Hydraulic System Implement Circuit | - 200 kg/cm2 /(2850 psi) |
| Pilot Circuit | - 25 kg/cm2 |
| Hydraulic Main Pump Flow Capacity | - 190 Lpm at 1700 Rpm |
| Hydraulic Tank Volume | - 130 Gallon |
| Hydraulic Oil Cooler | - 120 Lpm Fin Type Cooler with Hydraulic Fan |
| Stabilizer Jack’s | - Four Hydraulic Jack with Box Type Guide |
| Machine Area Dimensions | - Length – 6200 mm - Width – 1550 mm - Height – 2100 mm - |
| Total Machine Weight | - 7900 kg’s Approx. |
| Operating Panel Type | - Pilot Operated |
