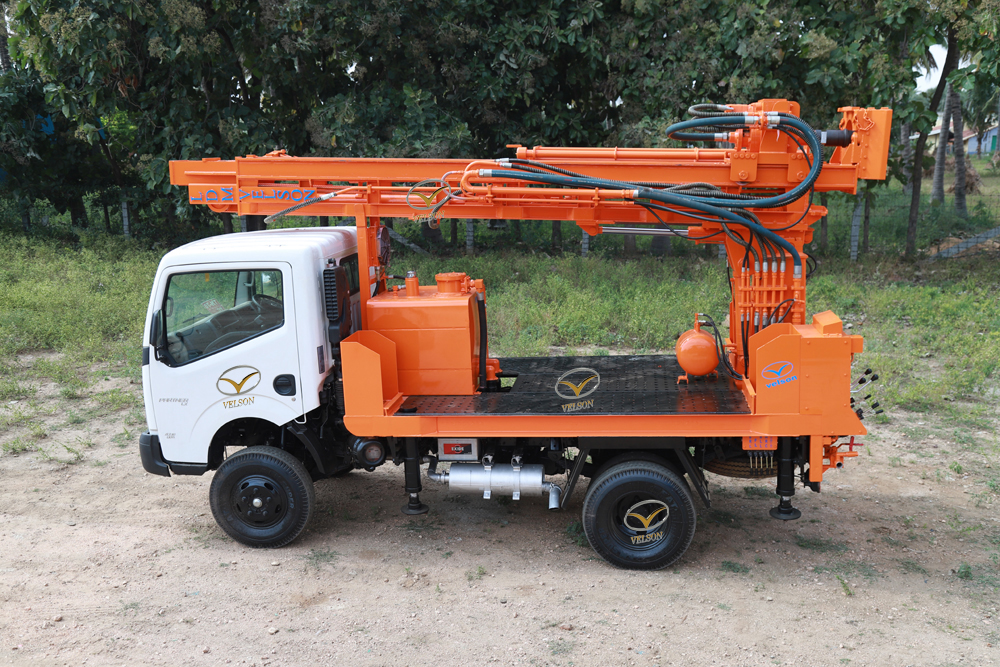

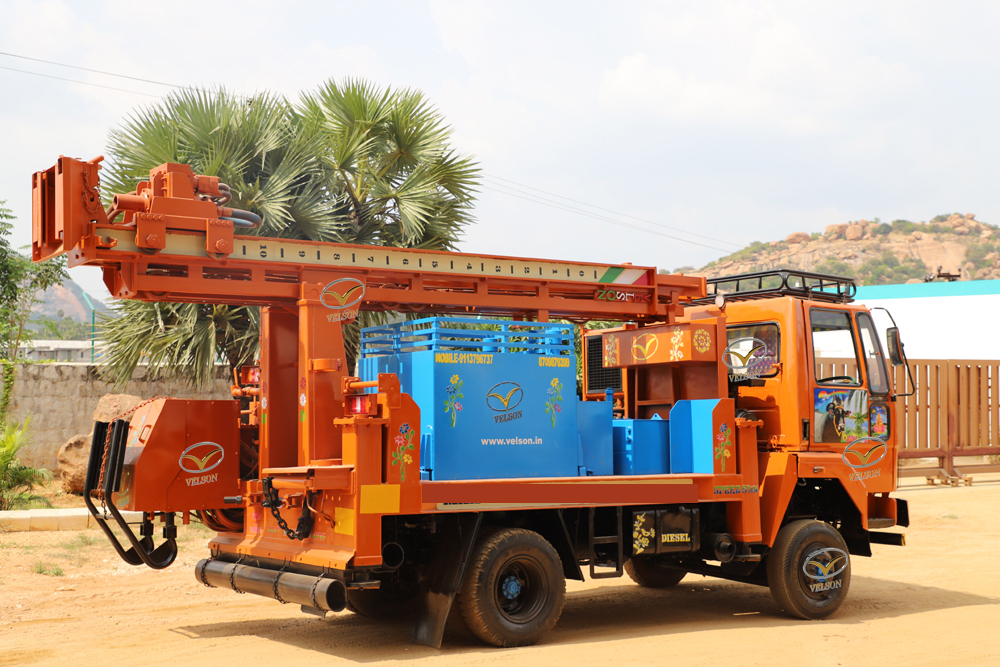

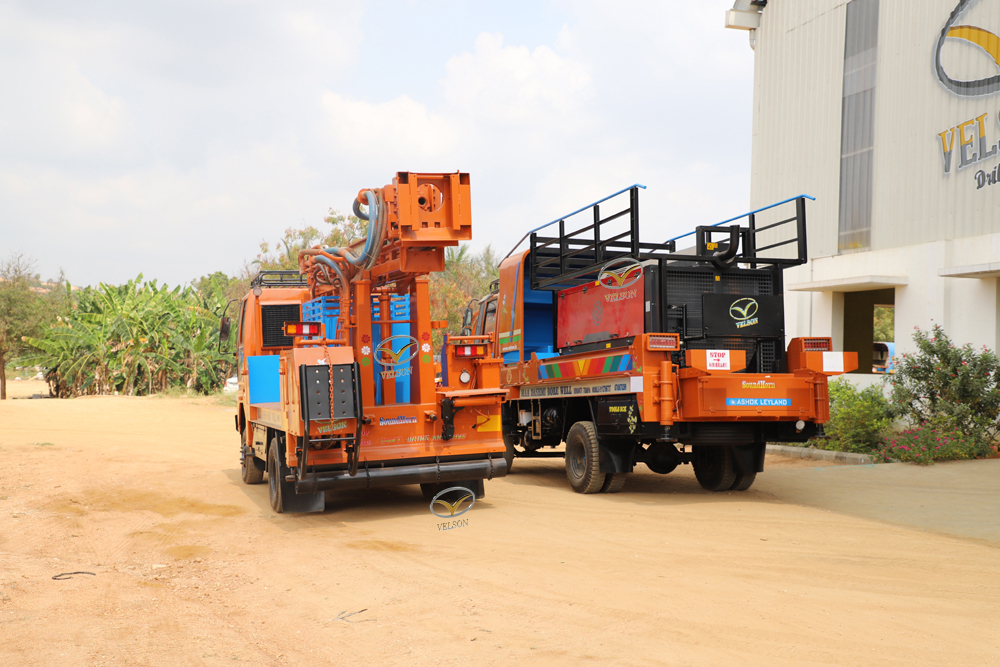

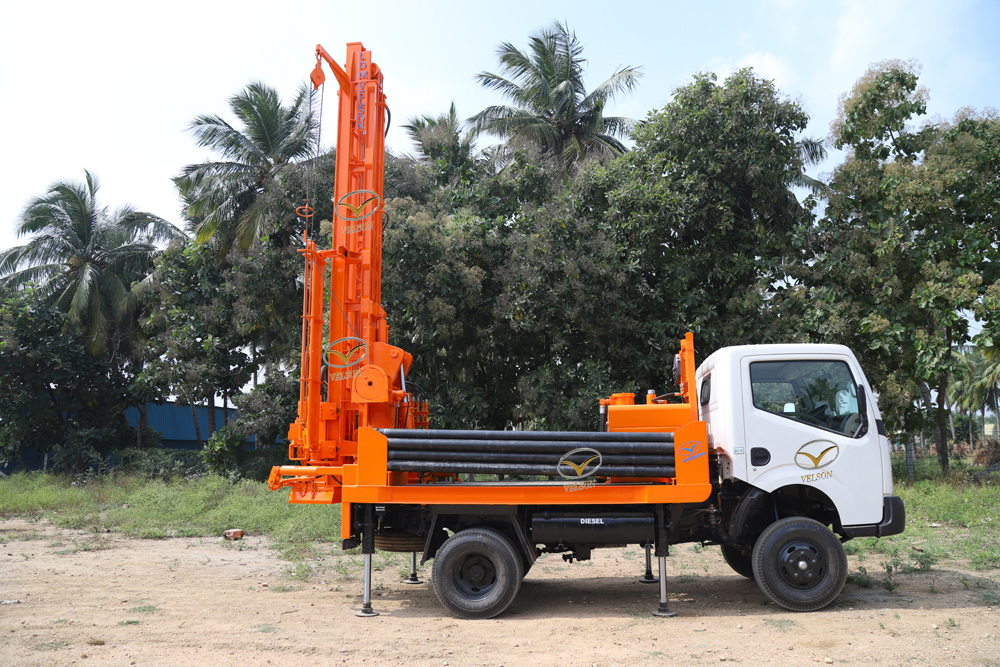

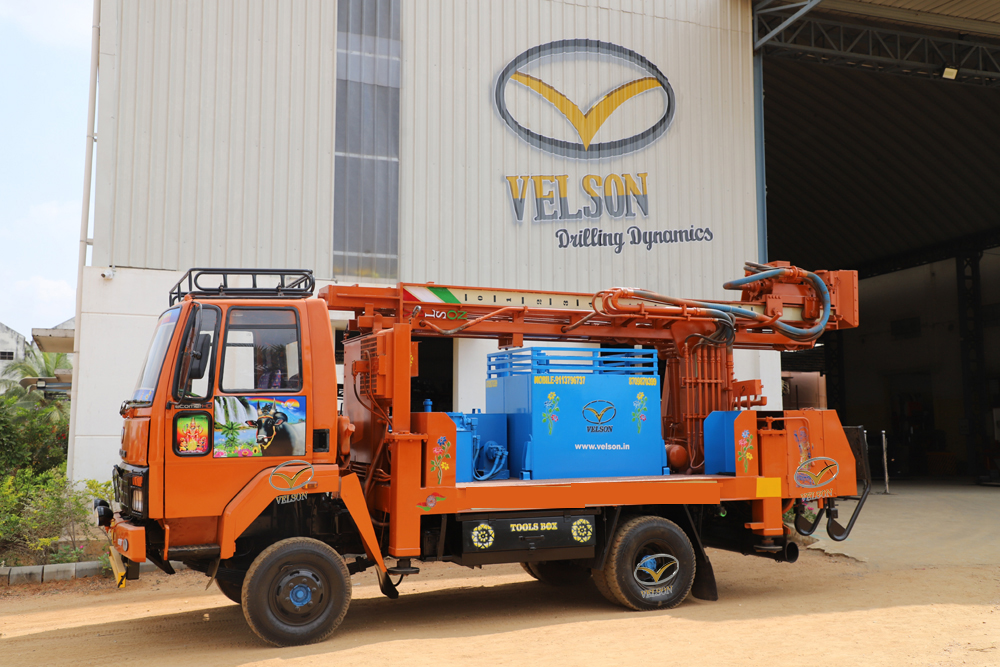

4The VELSON water well drill is the most powerful product in India. Its design and performance help to make a drill at any place. The drill rig is available for LCV-Light Commercial Vehicle integration and mounting.
Product Description
| Water Well Rigs - VELSON V4 Red Fox | |
|---|---|
| Application | - 6.5” borehole to a depth of 90 mtr |
| Prime Mover | - Truck Mounted Rig with Power from Truck Engine |
| MAST | - Box Type Structure - Height – 5.7 mtr (18.7 ft) - Rod Handling Capacity – 3.04 mtr(10 ft) |
| PTO | - Manual Lever Operation |
| MAX. PULL UP FORCE | - 3000 kgs |
| MAX. PULL UP SPEED | - 40 mtr/min |
| MAX. PULL DOWN FORCE | - 1500 kgs |
| MAX. PULL DOWN SPEED | - 50 mtr/min |
| Hydraulic System | - 130 kg/cm2 |
| Hydraulic Oil Volume | - 90 Gallon |
| Hydraulic Oil Cooler | - 40 LPM Fin Type Cooler |
| Rotary Head | - Rotary Head Powered by One Hydraulic Orbit Motor - Max Torque – 2000 NM - Max Speed – 0 to 160 rpm |
| Rotary Head Travelling length | - 3600 mm |
| Water Injection Pump | - Triplex Reciprocating Pump Powered by Hydraulic Motor |
| Breakout | - Hydraulic Breakout |
| Rod Storage Capacity | - 24. Nos(10 Feet Length) |
| Rod Changer | - 10 ft Single Rod Handling |
| Top Winch | - 750 kgs (lifting load capacity) |
